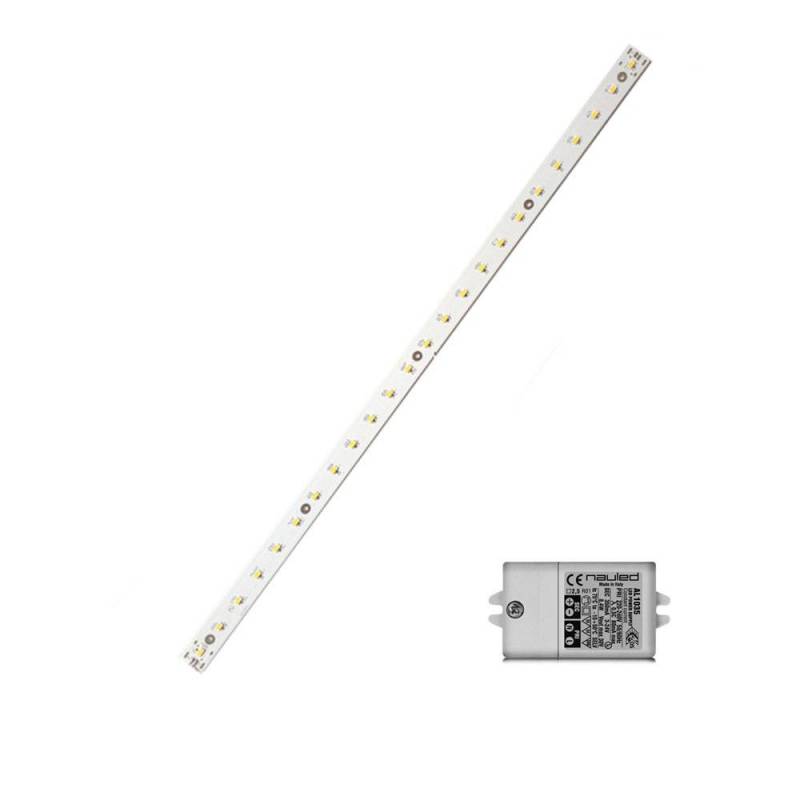

24 Middle Power LED Bar 6,6 W - 350 mA - length 496mm
Reference: 248PL
Product ideal for elevator operators
Led bar with 24 Middle Power LED to drive @350mA
Designed and optimized for the replacement of neon tubes 18 W.
On the underside of the pcb is positioned the heat-conductive adhesive to transfer heat to the dissipating part.
Included in the package: Connecting cable and LED Driver AL1035 (350 mA - power output 10 W)
DATASHEET
∎ n.24 Power LEDs
∎ METALCORE printed circuit board
∎ 350 mA constant current power supply
∎ Nominal Voltage 18,9 VDC
∎ 6,6 W power
∎ Dimensions 496x20 mm
∎ The heat transfer adhesive in the heat sink is included
MADE IN ITALY
Product ideal for elevator operators
Led bar with 24 Middle Power LED to drive @350mA
METALCORE printed circuit
SMD5630
Dimensions 496mm x 20mm.
On the bottom side is placed the thermoconductive adhesive to transfer heat to the dissipating.
Designed and optimized for the replacement of neon tubes 18W.
Supplied with connection cable and AL1035 LED Driver
MADE IN ITALY
Data sheet
- View Angle
- 120°
- Max Current
- 350 mA
- Dimensions
- 496x20 mm
- Flux
- 960 Lm
- Max Power
- 6,6 W
- Color Temperature
- Neutral white (4000° K)
- Temperatura Top PCB @25°C
- 51° C
- Top Temperature pcb @25°
- 51° C
- Voltage
- 18,9 Vcc
