NBA9SXX
BA9S LED BULBS FOR 6/12/28 V BUTTON PANEL

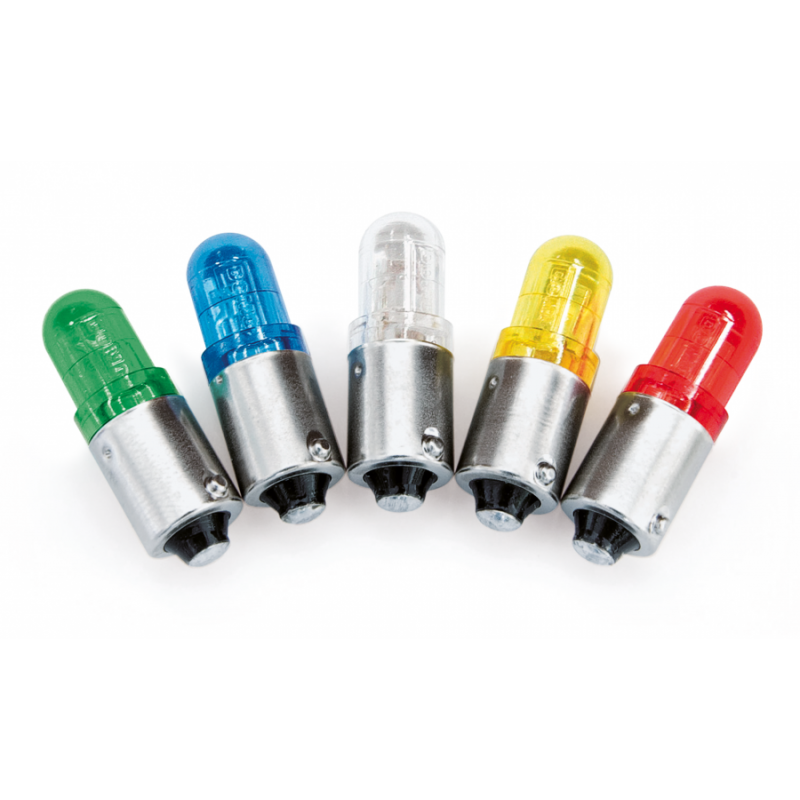

LED bulb with BA9s socket, ideal for replacing incandescent bulbs. 6–12–28 VAC/VDC operation with internal rectifier bridge and no polarity. Available with white, red or green light.
Technical features:
- Dimensions: 10.5x26 mm
- BA9S mount
- Light angle 160°
- Colors: white - green - red
- Operating temperature: -20° C to +60° C
- Degree of protection: IP40
Description
The BA9s 1 LED Bayonet Socket Bulb is designed to replace traditional incandescent bulbs, offering efficiency and reliability. It operates at 6–12–28 VAC/VDC thanks to the internal rectifier bridge that allows automatic use in AC and DC, without polarity. Available in white, red and green versions.
Technical features:
- Dimensions: 10.5x26 mm
- BA9S mount
- Light angle 160°
- Colors: white - green - red
- Operating temperature: -20° C to +60° C
- Degree of protection: IP40
Electrical Characteristics:
- Nominal voltage: 6 - 12 - 28 Vac/Vdc
- Power 0.5 W
- Power consumption 15 mA
Technical characteristics
View Angle
160°
Connection
BA9s
Dimensions
10,5x26 mm
Power
0,5 W
