NSTR_2835-24V-9.6W-160L-X

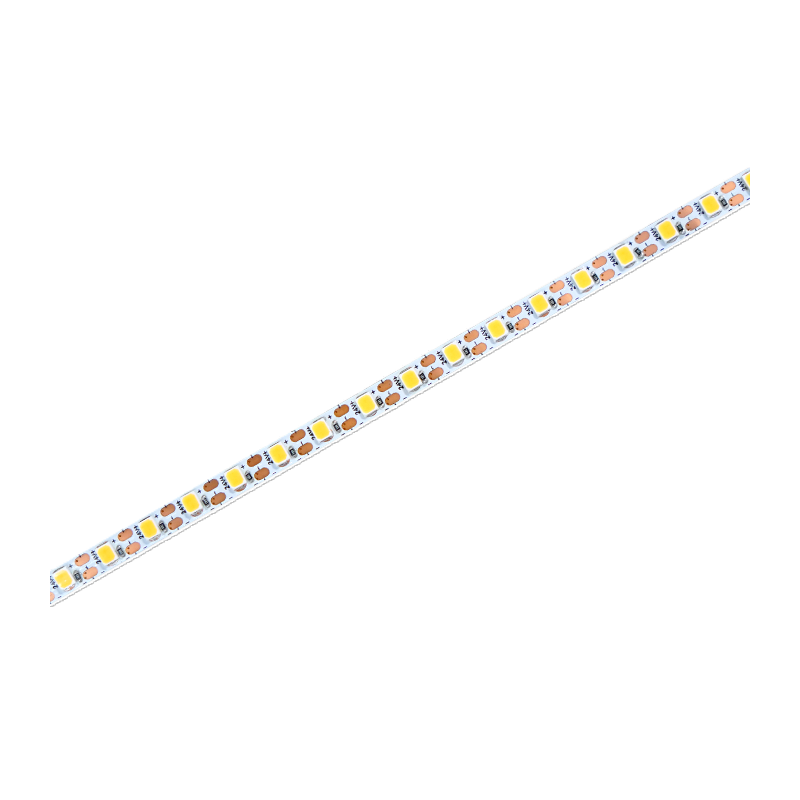

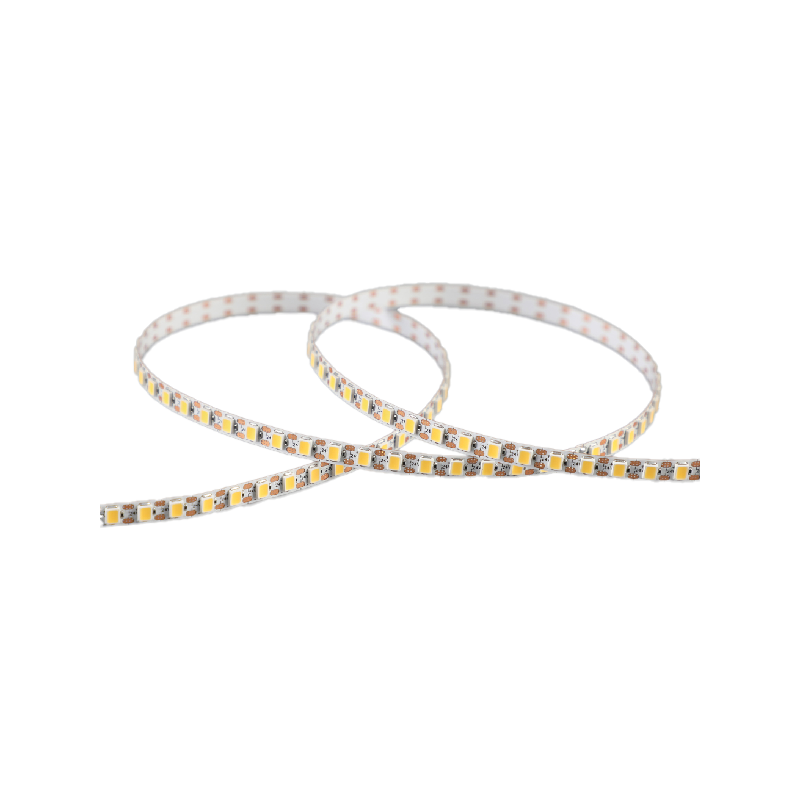

LED Strip 2835 24V- 160Led/m - 9,6W - 5mm - IP20 - Ra90
The N8120 LED Strip: professional solution, thanks to low consumption of only 9.6 W per meter. It offers up to 3 times more light output than common household LED strips, ensuring uniform, intense light with no visible dots. With a narrow width and modular cut every 6,25 mm, it adapts precisely to any project and space, even the smallest ones.
Technical features:
- 25 m reel
- N° Led 160 Led/m
- Pcb Width 5mm
- Energy Class E
- Dimmable
Description
The N8120 LED Strip is the professional solution, thanks to low consumption of only 9.6 W per meter. It offers a light output up to 3 times higher than common domestic LED strips, ensuring uniform, intense light without visible dots thanks to the density of 160 LEDs / m. With a narrow width and modular cut every 6,25 mm, it adapts precisely to any project and space, even the smallest ones. Always dimmable, it allows the adjustment of the light intensity and ensures excellent colour rendering.
Technical features:
- Reel 25 mt
- N° Led 160 Led/m
- Cutting Unit 1 LED/6,25mm
- Pcb Width 5mm
- Operating temperature from -20°C to + 45°C
- Critical temperature: 75°C (max)
- IP20 degree of protection
- CRI Ra>90
- SDCM ≤3
Electrical Characteristics:
- Voltage DC24V
- Power 9.6 W/m
- Flow 1209 lm/m - 1276 lm/m - 1344 lm/m
Color Temperature:
- 2700K - Flux: 1209 lm/m
- 3000K - Flux: 1276 lm/m
- 4000K - Flux: 1344 lm/m
Installation and Use:
- To be combined with aluminum profiles for optimal heat dissipation
- Can be dimmed with special controllers
Technical characteristics
Energy Class
E
CRI
>90
Luminous Flux
1209 lm/m
1276 lm/m
1344 lm/m
1276 lm/m
1344 lm/m
IP rating
IP20
Pcb Width
5 mm
Reel Length
25 m
N° LED
160 Led/m
Power
9,6 W/m
Led Format
2835
Cut
1 led / 6,25 mm
Color Temperature
Neutral white (4000° K)
Warm White (2700°K)
Warm White (3000° K)
Warm White (2700°K)
Warm White (3000° K)
Operation Temperature
da -20° a +45° C
Voltage
24 V
