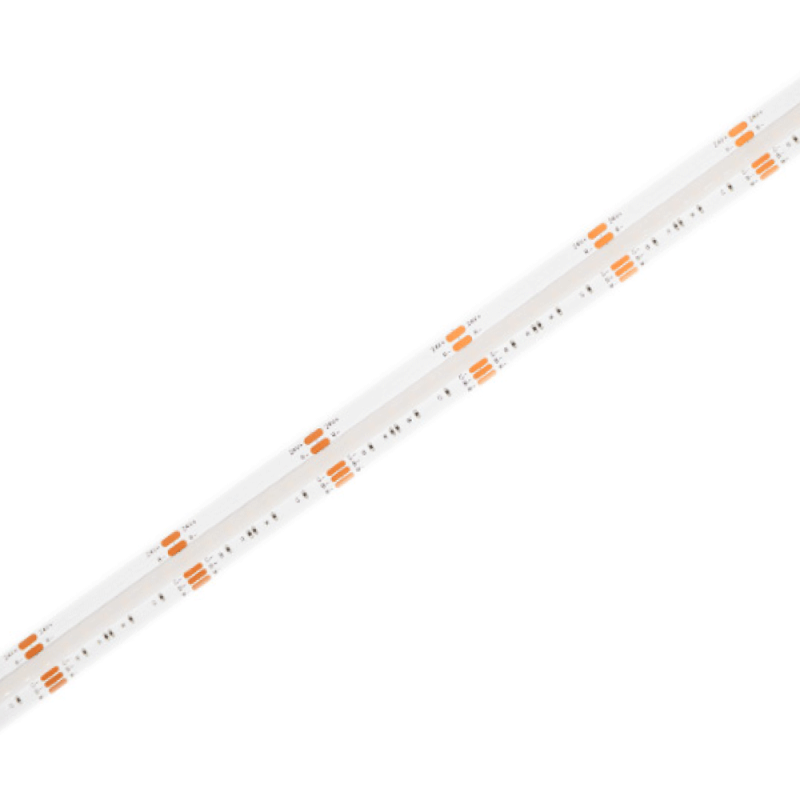

NSL-D-6241-RGBW-16W
RGB+W COB LED Strip 24V 16.8 W/m
Offers excellent light performance and 16.8 W White mode. Cuttable every 33.3 mm, dimmable and versatile for direct lighting, decorative and backlighting. UL, CE, RoHS certified.
Technical features:
- 5 m reel
- N° Led 840 Led/m
- Pcb Width 12 mm
- Light angle 120°
- Dimmable
- UL RoHS certified
Description
The RGB + White COB LED Strip is the perfect solution, thanks to its high light quality and versatility of use. In White mode, it provides 16.8W of power, ensuring uniform and bright light. Designed to fit every need, it can be cut every 33.3 mm, making installation simple and customizable.
Technical features:
- Reel 5 mt
- N° Led 840 Led/m
- Cutting Unit 33.3 mm
- Pcb Width 12 mm
- Operating temperature from -25°C to + 40°C
- IP20 degree of protection - IP65/IP67 on request
Electrical Characteristics:
- Voltage DC24V
- Power 16.8 W/m
- Flow 815 lm/m - 830 lm/m - 890 lm/m
- Efficiency 48 lm/W - 49 lm/W - 53lm/W
Color Temperature:
- White 2700K - Flux: 815 lm/m - Efficiency: 48 lm/W
- White 3000K - Flux: 830 lm/m - Efficiency: 49 lm/W
- White 4000K - Flux: 890 lm/m - Efficiency: 53 lm/W
- White 6000K - Flux: 830 lm/m - Efficiency: 49 lm/W
Installation and Use:
- To be combined with aluminum profiles for optimal heat dissipation
- Can be dimmed with special controllers
- Requires 24V LED power supply (driver) not included in the package
Technical characteristics
IP rating
IP20
Pcb Width
12 mm
Reel Length
5 m
N° LED
840 Led/m
Power
16,8W/m
Led Format
COB
Color Temperature
RGBW
Operation Temperature
da -25° a +40° C
Voltage
24 V
