PL2716

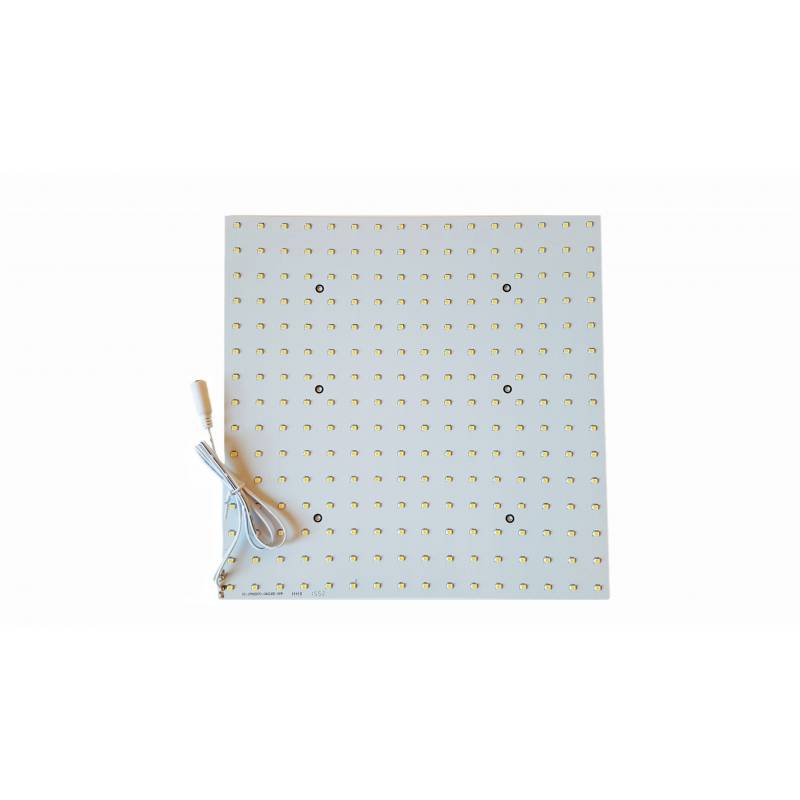

Square LED Plate for retrofit - 270x270 mm - 240 Leds
270x270 mm square LED plate, designed and developed for the modernization of lighting in elevators, elevators and freight elevators. It guarantees energy savings of up to 70%, 4000K neutral white light, power supply included and emergency kit available.
Technical features:
- Dimensions: 270 mm x 270 mm
- Number of LEDs: 240
- Square shape
- Light Angle: 110°
- 6 fixing holes on the edges and power cable with 3.5mm jack socket
- AL1570 POWER SUPPLY INCLUDED
- Emergency operation kit available
MADE IN ITALY
Description
The Square LED Plate is the ideal solution for renewing the lighting of lifts, elevators and freight elevators, replacing traditional ceiling lights or neon tubes. Modernization not only improves performance and comfort, but also allows energy savings of up to 70%, increasing the value of the building.
Technical features:
- Dimensions: 270 mm x 270 mm
- Number of LEDs: 240
- Square shape
- Light Angle: 110°
- Fixing Mode: 4MA Screws
- Power cable with 3.5mm jack socket
- AL1570 POWER SUPPLY INCLUDED
- Emergency operation kit available
Electrical Characteristics:
- Nominal voltage 22.85 Vdc
- Power 16 W
- Current 700 mA
- Flow 1600 lm
Color Temperature:
- Neutral White (4000K)
Technical characteristics
View Angle
110°
Max Current
700 mA
Dimensions
33x33 cm
Luminous Flux
4200 Lumen
Shape
Square
Fixing Mode
screw 4ma
N° LED
240
Power
16 W
Color Temperature
Neutral white (4000° K)
Voltage
22,85 Vcc
