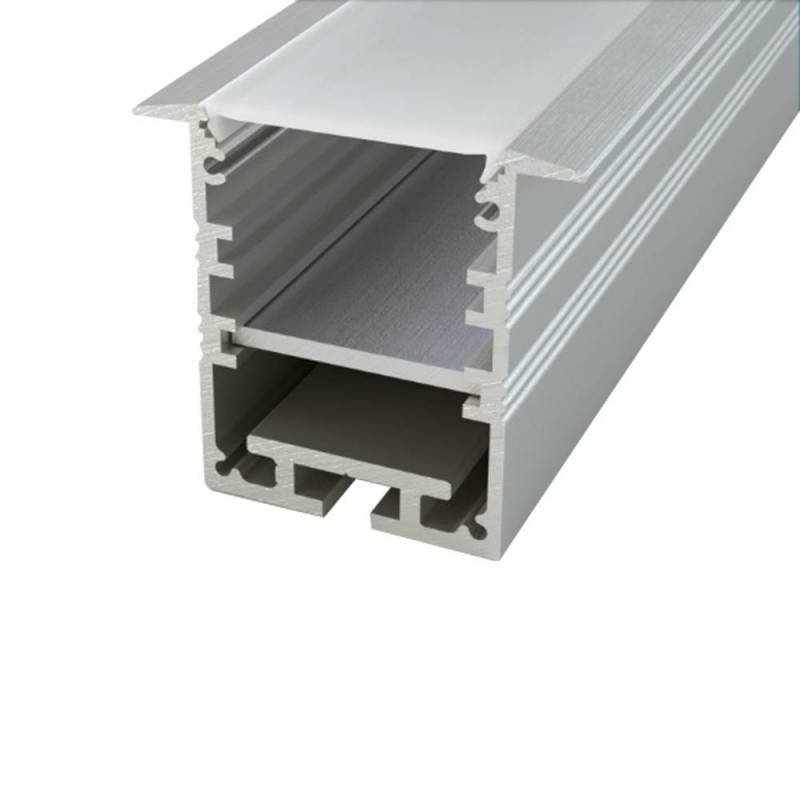

NP022 Aluminum LED Profile

Extruded aluminum LED profile, guarantees optimal heat dissipation, durability and an elegant design. Available in different finishes and customizable.

Technical features:

• Resistant extruded aluminum LED profile
• Section size of 30.8 mm x 40.8 mm - Usable interior 22.8 mm
• Standard length 2 meters or 3 meters, with the possibility of cutting to size
• Profile Height Range 31-40mm
• Profile Width Range 41-50mm
• Dissipation Capacity: recommended for use for LED strips up to 30 W/m
• Rectangular Profile Shape
• Type of application: Built-in
• Available finishes: Anodized Aluminum - White Painted - Black Painted
• Type of cover: Flat Opal - PMMA Opal - Flat Black PMMA - Flat Prismatic Transparent - High PMMA Opal - Luminum Cover Profile

The following accessories are available:

• Recessed Mounting:
  - Spring bracket for anchoring (recommended use every 70 cm)
• Blanking Caps:
  - Plastic, available with or without cable hole
  - Metal, available with or without cable hole suitable for any available cover
• Junctions:
  - Linear luminum joint - dim. 40 x 10.7 x 3 mm including 2 M4x6 grub screws
  - Luminum corner joint - dim. 40 x 40 x 3 mm including 4 M4x6 grub screws
  - Kit consisting of n.1 corner joint in raw aluminum n.2 M8x8 pointed screws in stainless steel

We create custom finished product solutions complete with LED strip, power cable and Led driver.

MADE IN ITALY
