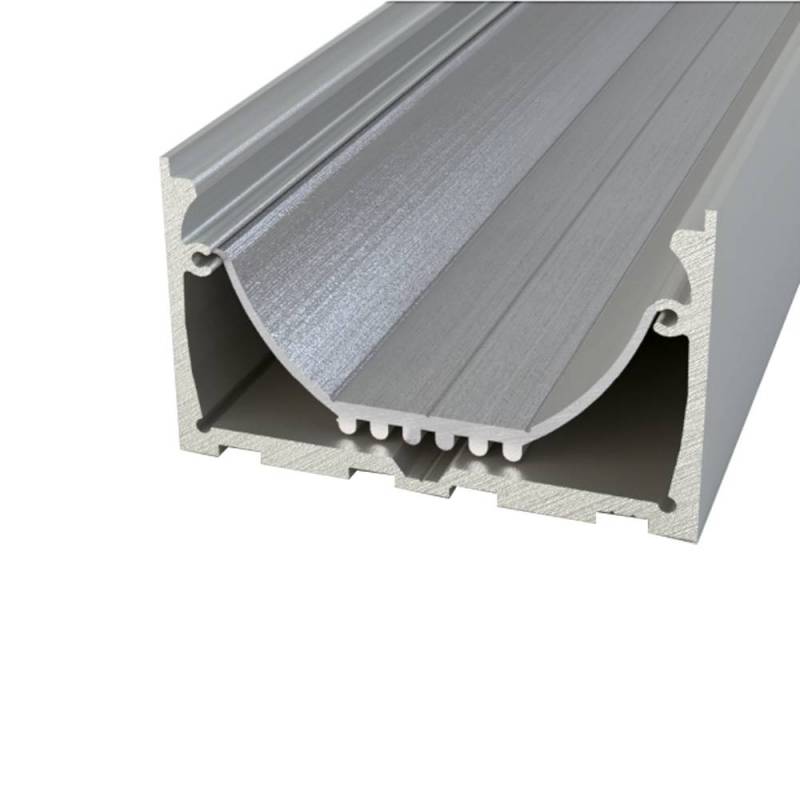

Aluminium LED Profile NP051
Zoom photo
  • Aluminium LED Profile NP051
  • Dimensions LED Profile NP051 56,2x34,4 mm
  • Aluminium, white and black finishes LED Profile NP051
  • Cover LED Profile NP051
  • Accessories LED Profile NP051
  • Caps LED Profile NP051
  • Aluminium LED Profile NP051
  • Aluminium LED Profile NP051
NP051

NP051 Aluminum LED Profile

Extruded aluminum LED profile guarantees optimal heat dissipation, durability and an elegant design. Available in different finishes and customizable.

Technical features:

  • Resistant extruded aluminum LED profile
  • Section size of 56.2 mm x 34.4 mm
  • Standard length 2 meters, with the possibility of cutting to size. On request length 3 meters
  • Profile Height Range 31-40mm
  • Profile Width Range 51-60mm
  • Dissipation Capacity: recommended for use for LED strips up to 50 W/m
  • Rectangular Profile Shape
  • Type of application: Wall - Ceiling
  • Available finishes: Anodized Aluminum - White Painted - Black Painted
  • Type of cover: Opal PMMA - Opal PMMA High - Transparent Prismatic Flat - Black PMMA Flat - Transparent Flat

We create custom finished product solutions complete with LED strip, power cable and Led driver.

MADE IN ITALY

Profile Color: Anodized Aluminium
Profile Cover: Transparent Polycarbonate
Secure payments
Secure payments
Fast shipping
Fast shipping
Return policies
Return policies
Description

The NP051 Luminum LED Profile is made of extruded aluminum, it ensures optimal thermal dissipation, increasing the useful life of the LEDs and improving light performance.

Key features:

  • Heat Dissipation: Aluminum provides efficient thermal management, extending the life of the LEDs
  • Protection: The profile protects the LED strips from dust, moisture, and impacts
  • Aesthetics: Offers a clean and professional look

The following accessories are available:

  • Cover cap kit n.2 closed caps + n.1 cap with cable hole + n.4 stainless steel screws
  • Kit of caps n.2 closed caps n.4 stainless steel screws
  • N.1 cap with cable hole
  • N.1 aluminum cap without visible screws - with n.2 stainless steel grub screws
  • kit consisting of n.1 cap with cable hole n.1 closed cap
  • Aluminum corner joint
  • Aluminum Linear Joint
  • Raw parabolic gearbox
  • White parabolic gearbox
Technical characteristics
Profile Height
31-40 mm
Application
Ceiling
Wall
LED Profile Dimensions
56,2x34,4 mm
Finishing
Black
Satin Aluminium
White
Profile Shape
Rettangolare
Profile Width
51-60 mm
Max length bar
3 m
Utilizzo
con Strip Led fino a 50 W/m
Download documents
Led Profile NP051 Data Sheet Led Profile NP051
