NP053

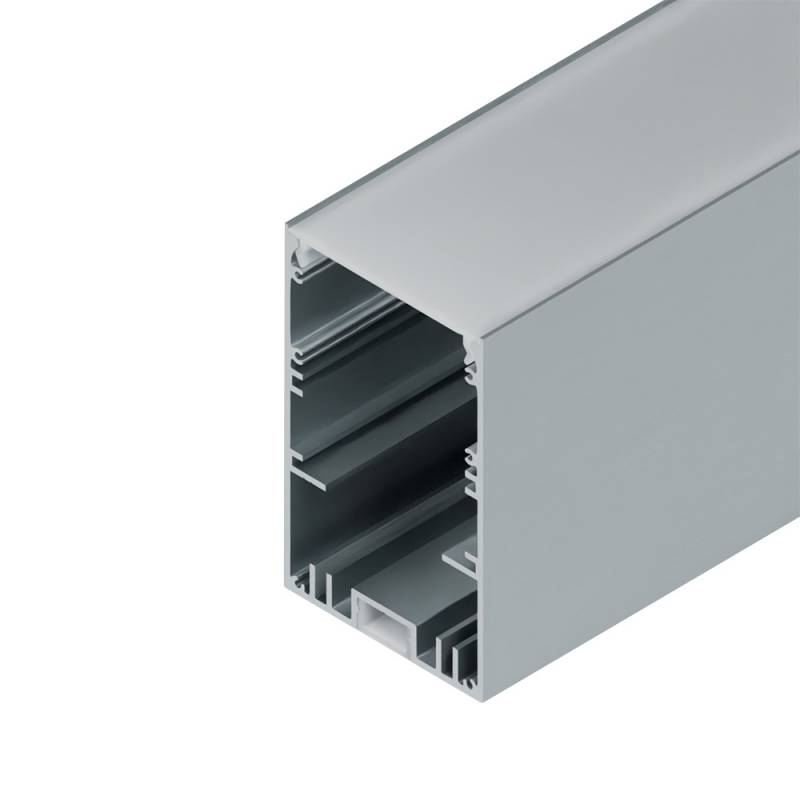

NP053 Aluminum LED Profile
Extruded aluminum LED profile guarantees optimal heat dissipation, durability and an elegant design. Available in different finishes and customizable.
Technical features:
- Resistant extruded aluminum LED profile
- Section dimensions of 90 mm x 56.2 mm
- Standard length 2 meters, with the possibility of cutting to size. On request length 3 meters
- Profile Height Range 81-90mm
- Profile Width Range 51-60mm
- Dissipation Capacity: recommended for use for LED strips up to 35 W/m
- Rectangular Profile Shape
- Type of application: Wall
- Available finishes: Anodized Aluminum - White Painted - Black Painted
- Type of cover: Flat Opal - PMMA Opal - Flat Prismatic Transparent - Flat PMMA Black - Flat Transparent - High PMMA Opal
We create custom finished product solutions complete with LED strip, power cable and Led driver.
MADE IN ITALY
Description
The NP053 aluminum LED profile is made of extruded aluminum, it ensures optimal thermal dissipation, increasing the useful life of the LEDs and improving light performance.
Key features:
- Heat Dissipation: Aluminum provides efficient thermal management, extending the life of the LEDs
- Protection: The profile protects the LED strips from dust, moisture, and impacts
- Aesthetics: Offers a clean and professional look
The following accessories are available:
- Kit consisting of: n.8 autofil. + 2 aluminum caps
- Kit consisting of: n.8 autofil. + 2 aluminum caps
- Luminum cap without visible screws
- Plastic cap
- Painted plastic cap
- Raw parabolic gearbox
- White parabolic gearbox
- Silver oxidized aluminum clip for wall mounting
- N.2 stainless steel clips with screws and dowels
- Heat sink led dim. 50x2mm
- Sliding magnet in Neodymium Iron Boron (NdFeB) Sintered - Anisotropic - Finish: Nickel-plated for application of profiles on a metal support.
Technical characteristics
Profile Height
81-90 mm
Application
Suspension
LED Profile Dimensions
90x56,2 mm
Finishing
Black
Satin Aluminium
White
Satin Aluminium
White
Profile Shape
Rettangolare
Profile Width
51-60 mm
Max length bar
3 m
Utilizzo
con Strip Led fino a 50 W/m
