NP0265

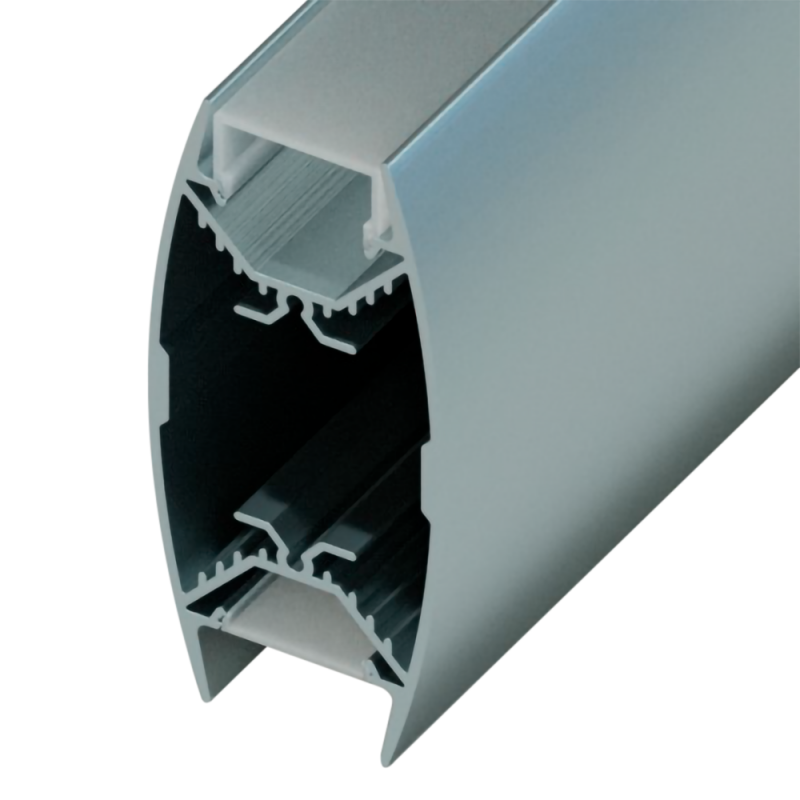

NP0265 Aluminum LED Profile
Extruded aluminum LED profile, guarantees optimal heat dissipation, durability and an elegant design. Available in different finishes and customizable.
Technical features:
- Resistant extruded aluminum LED profile
- Section dimensions of 118.7 mm x 55 mm
- Standard length 2 meters, with the possibility of cutting to size. On request Length 3 meters
- Profile Height Range 101-110mm
- Profile Width Range 51-60mm
- Dissipation Capacity: recommended for use for LED strips up to 50 W/m
- Type of application: Wall
- Available finishes: Anodized Aluminum - White Painted - Black Painted
- Special colours on request (minimum 6 metres)
- Type of cover: Flat Opal - Flat PMMA Opal - High PMMA Opal - Black Flat PMMA - Flat Prismatic Transparent
We create custom finished product solutions complete with LED strip, power cable and Led driver.
MADE IN ITALY
Description
The NP0265 aluminum LED profile is made of extruded aluminum, it ensures optimal thermal dissipation, increasing the useful life of the LEDs and improving light performance.
Key features:
- Heat Dissipation: Aluminum provides efficient thermal management, extending the life of the LEDs
- Protection: The profile protects the LED strips from dust, moisture, and impacts
- Aesthetics: Offers a clean and professional look, improving integration within elevator cars
The following accessories are available:
- Aluminum End Cap
- Oval washer for fixing
- Nickel-plated cable retaining cylinder with spring mechanism
Technical characteristics
Profile Height
101-110 mm
Application
Suspension
LED Profile Dimensions
118,7x55 mm
Finishing
Black
Satin Aluminium
White
Satin Aluminium
White
Profile Width
51-60 mm
Max length bar
3 m
Utilizzo
con Strip Led fino a 50 W/m
