NP0175

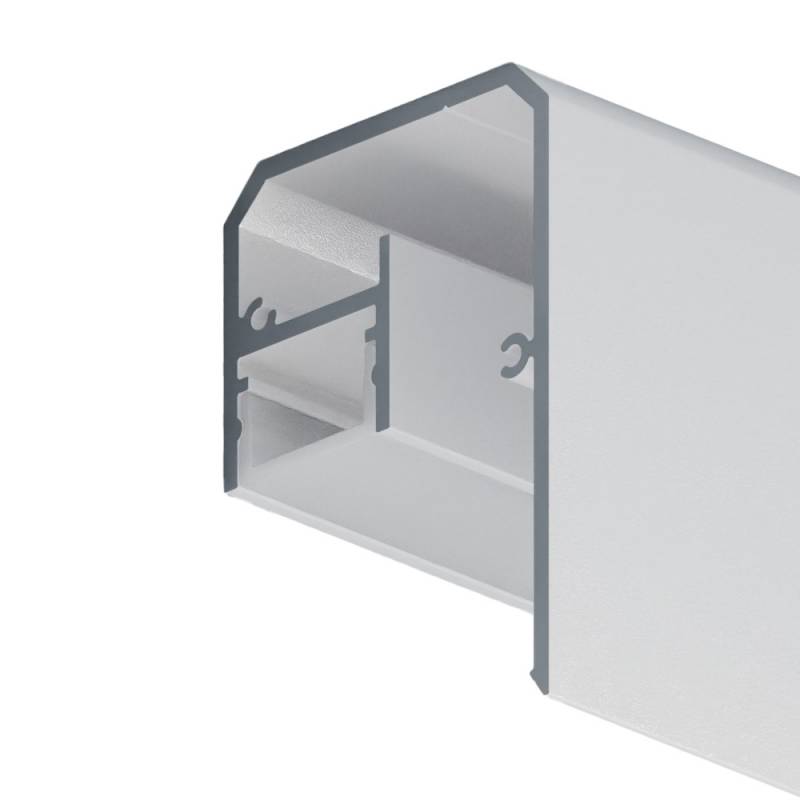

NP0175 Aluminum LED Profile
Extruded aluminum LED profile, guarantees optimal heat dissipation, durability and an elegant design. Available in different finishes and customizable.
Technical features:
- Resistant extruded aluminum LED profile
- Section dimensions of 36 mm x 55 mm - Usable interior 15.2 mm
- Standard length 2 meters and 3 meters, with the possibility of cutting to size
- Profile Height Range 51-60mm
- Profile Width Range 31-40mm
- Dissipation Capacity: recommended for use for LED strips up to 30 W/m
- Rectangular Profile Shape
- Type of application: Wall - Ceiling
- Available finishes: Anodized Aluminum - White Painted - Black Painted
- Type of cover: Flat Opal - Flat Transparent - Flat PMMA Opal - Flat PMMA Black - Flat Transparent Transparent - High PMMA Opal - Round Opal - Lenticular Transparent
The following accessories are available:
Blanking Caps:
- Metal, kit consisting of 2 closed caps and 4 self-threaded screws 2x2 x 6.5 mn available
We create custom finished product solutions complete with LED strip, power cable and Led driver.
MADE IN ITALY
Description
The NP175 aluminum LED profile is made of extruded aluminum, it ensures optimal thermal dissipation, increasing the useful life of the LEDs and improving light performance.
Key features:
- Heat Dissipation: Aluminum provides efficient thermal management, extending the life of the LEDs
- Protection: The profile protects the LED strips from dust, moisture, and impacts
- Aesthetics: Offers a clean and professional look, improving integration within elevator cars
Technical characteristics
Profile Height
51-60 mm
Application
Ceiling
Wall
Wall
LED Profile Dimensions
25,9x14,8 mm
Finishing
Black
Satin Aluminium
White
Satin Aluminium
White
Profile Width
31-40 mm
Max length bar
3 m
Utilizzo
con Strip Led fino a 30 W/m
