NP0181

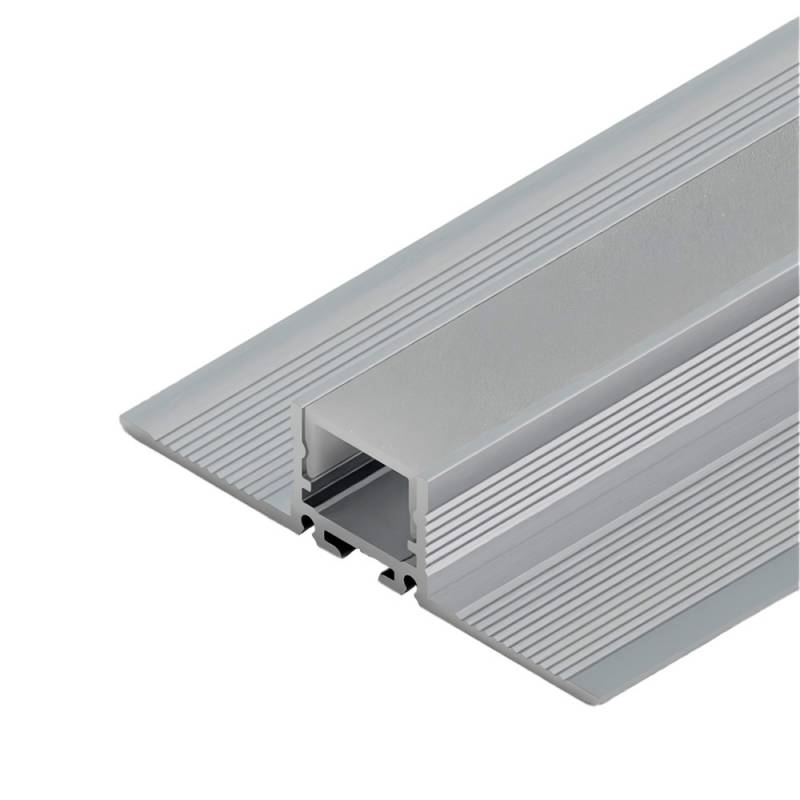

NP0181 Aluminum LED Profile
Extruded aluminum LED profile, guarantees optimal heat dissipation, durability and an elegant design. Available in different finishes and customizable.
Technical features:
- Resistant extruded aluminum LED profile
- Section size of 63.8 mm x 15 mm - Usable interior 10.8 mm
- Standard length 2 meters and 3 meters, with the possibility of cutting to size
- Profile Height Range 11-20mm
- Profile Width Range 61-70mm
- Dissipation Capacity: recommended for use for LED strips up to 30 W/m
- Rectangular Profile Shape
- Type of application: Built-in
- Available finishes: Anodized Aluminum - White Painted - Raw Profile
- Type of covering: Flat Opal - Flat PMMA Opal - Flat Transparent - Flat PMMA Black - Prismatic Flat Transparent - High PMMA Opal - Wide PMMA Opal - Round Opal - Lenticular Transparent
The following accessories are available:
Blanking Caps:
- In metal, kit consisting of n.1 closed cap + n.1 perforated cap Ø5 mm + n.4 self-tapped screws 2.2 X6.5 stainless steel
We create custom finished product solutions complete with LED strip, power cable and Led driver.
MADE IN ITALY
Description
The NP0181 aluminum LED profile is made of extruded aluminum, it ensures optimal thermal dissipation, increasing the useful life of the LEDs and improving light performance.
Key features:
- Heat Dissipation: Aluminum provides efficient thermal management, extending the life of the LEDs
- Protection: The profile protects the LED strips from dust, moisture, and impacts
- Aesthetics: Offers a clean and professional look, improving integration within elevator cars
Technical characteristics
Profile Height
11-20 mm
Application
Recessed
LED Profile Dimensions
25,9x14,8 mm
Finishing
Satin Aluminium
White
White
Profile Width
61-70 mm
Max length bar
3 m
Utilizzo
con Strip Led fino a 30 W/m
