Kit 3 surface-mounted LED VULCAN Spotlights 105-15 3,5 W + power supply, extentions, wirings
Suitable product for lifts and elevators
Kit 3 round surface-mounted LED VULCAN 105-15 spotlights with reduced overall dimensions, only 15 mm.
Complete and ready-to-use equipment. Spotlights kit immediately ready for installation!
Ideal LED spotlights for surface-mounted application on ceilings or false ceilings.
Elegant aesthetics, stainless steel finish.
Why choosing VULCAN LED Spotlights?
It could be mounted on every pre existent hole from 10 to 84 mm diameter! And it is very simple to install through the supplied screws!

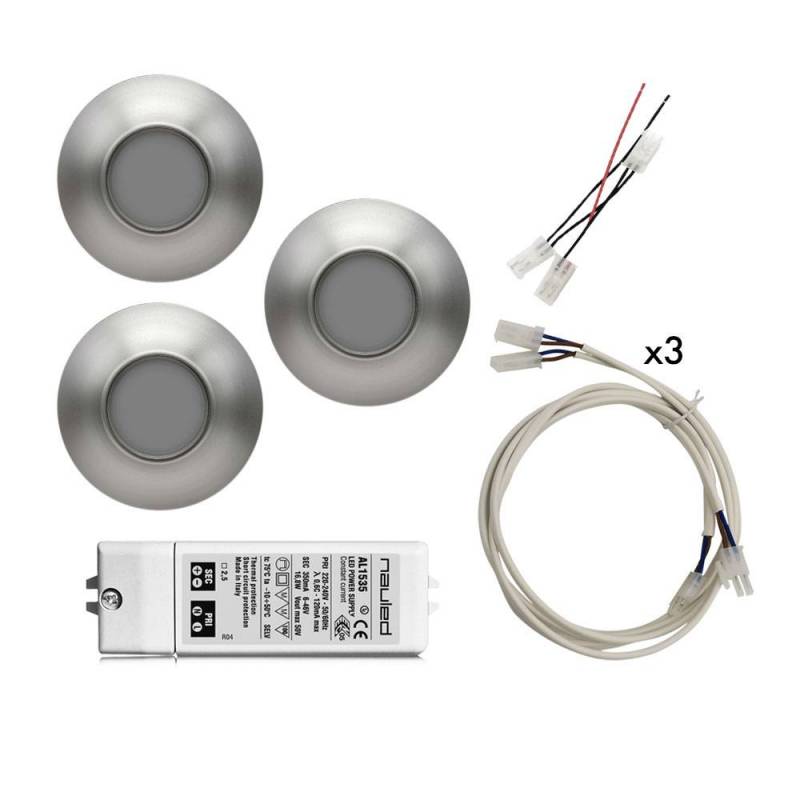

3 led VULCAN spotlights 105-15 kit composition:
∎ n. 3 surface-mounted LED spotlights vulcan 105-15
∎ n. 1 AL1535 power supply - 350mA constant current - power: 16,1 W
∎ n. 3 pick & light extensions - length 1 meter
∎ n. 1 3-way wiring
There is also the possibility of emergency integration for one or both spotlights with our emergency kits!
N.B.The characteristics listed in "Product Details" refer to the single LED spotlight.
MADE IN ITALY
The surface-mounted VULCAN 105-15 LED spotlight kit has been designed specifically for those who need or are looking for a ready-to-use solution for installation.
The set is complete with: 3 vulcan led spotlights + AL1535 power supply + 3 extensions + 3-way wiring.
Nothing else is needed!
Characteristics of the VULCAN 105-15 LED spotlights:
∎ Round surface-mounted LED spotlight with reduced overall height, only 15 mm.
∎ METALCORE Printed Circuit with 3 CREE brand LEDs
∎ Body in anodized aluminum
∎ It is possible to instal it on every pre existant holes from 10 to 104 mm diameter!
∎ 350 mA constant current power supply
∎ Nominal voltage 9.9 Vdc
∎ Power 3.5 W
∎ Ring diameter 85 mm
- 15 mm
- View Angle
- Max Current
- 350 mA
- Ring Diameter
- 105 mm
- Recessed hole diameter
- till 104 mm
- 270 Lm
- Included in the kit
- n°1 3-ways wiring
n° 1 power supply AL1535
n° 3 extention 1m
n° 3 led spotlights
- Max Power
- 3,5 W
- Color Temperature
- Neutral white (4000° K)
Warm White (3200° K)
- 9,9 Vcc
- Spotlight Type
