Kit 3 Spotlight 12 LED Anti-vandal 5385 hole ø 55 mm - 2,87 W + power supply, extentions, wirings

Reference: KIT3-N12305385I-AV

Suitable product for lifts and elevators

Product Certified UNI EN 81-71:2005 CAT. 2

Stop theft and hacking!

Impossible to steal it
Impossible to tamper with it
Flame-resistant

12 LED round 5385-AV recessed spotlight supplied with Anti-vandal Kit.

The 5 mm thick tempered glass provides impact resistance.

The recessed hole is ø 55 mm.

Spotlight 5385-AV has been certified Anti-vandal Category 2 for installation in elevator cabins, especially for ceiling mounting by fixing bracket and screws provided.

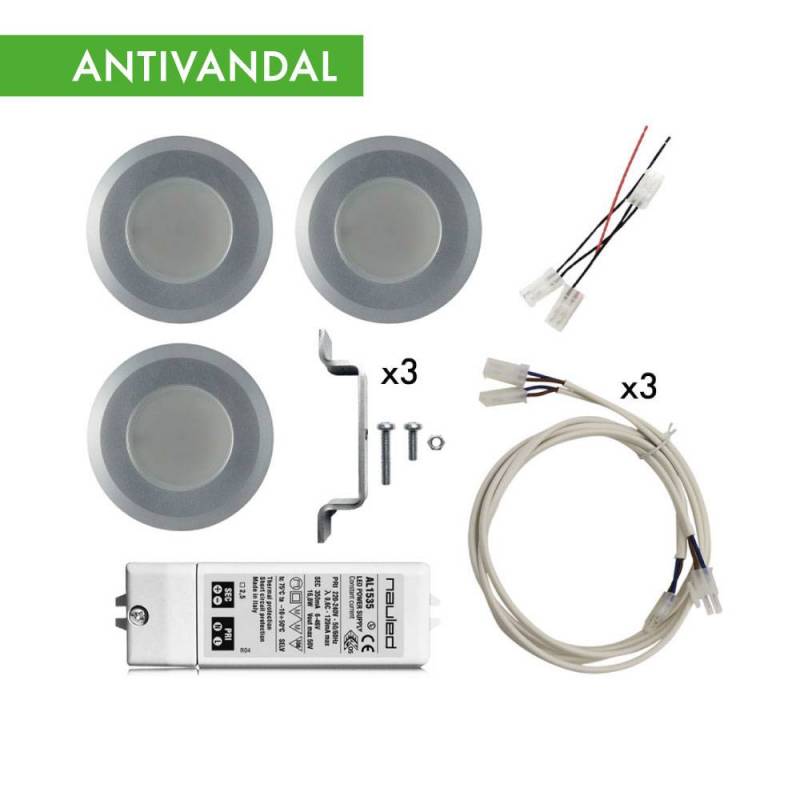

3 LED SPOTLIGHTS 5385 KIT COMPOSITION:

n. 3 recessed 12 LED spotlights 5385
n. 3 Anti-vandal kit*
n. 1 power supply of your choice from AL1035/AL1535 and AL20MCH
n. 3 pick & light extensions - length 1 meter
n. 1 3-way wiring

There is also the possibility of emergency integration for one or both spotlights with our emergency kits!

*THE ANTI-VANDAL KIT CONSISTS OF:

n° 1 bracket
n° 1 short screw
n° 1 long screw
n° 1 nut

Simply attach the supplied bracket and screws to secure the spotlight from thieves and bullies.

N.B.The characteristics listed in "Product Details" refer to the single LED spotlight.

MADE IN ITALY

The 12 LED Anti-vandal Spotlight 5385 has been certified to provide enhanced security against vandalism and hacking without sacrificing quality light efficiency.

SPOTLIGHT FEATURES

Recessed LED spotlight
METALCORE printed circuit board with 12 CREE brand LEDs
Body obtained from full anodized aluminum
350 mA constant current power supply
Rated voltage 8.2 VDC
Power output 2.87 W
Recessed hole diameter 55 mm
Body diameter 53 mm
Ring diameter 85 mm
IP20
Insulation class III

The spotlight is entirely manufactured in Italy with high quality materials.

The following color temperatures are available:

Neutral White 4000°K
Warm White 3000°K

Ready-to-use kits complete with:

2/3/4 spotlights
wirings
extensions
led driver

The spotlight can also be combined with the Emergency Kit EL6171

Data sheet

Height: 23 mm
View Angle: 120°
Energy Class: C
Max Current: 350 mA
Ring Diameter: 85 mm
Body Diameter: 53 mm
Recessed hole diameter: 55 mm
Efficiency: 120 Lm/W
Finishing: Steel
Luminous Flux: 327 Lm
337 Lm
Included in the kit: n°1 3-ways wiring
n° 1 power supply AL1535 or AL20MCH
n° 3 Anti-vandal Kit
n° 3 extention 1m
n° 3 led spotlights
Max Power: 2,87 W
Color Temperature: Neutral white (4000° K)
Warm White (3000° K)
Voltage: 8,2 Vdc
Spotlight Type: Recessed
