KIT4-N12XX5385I-AV

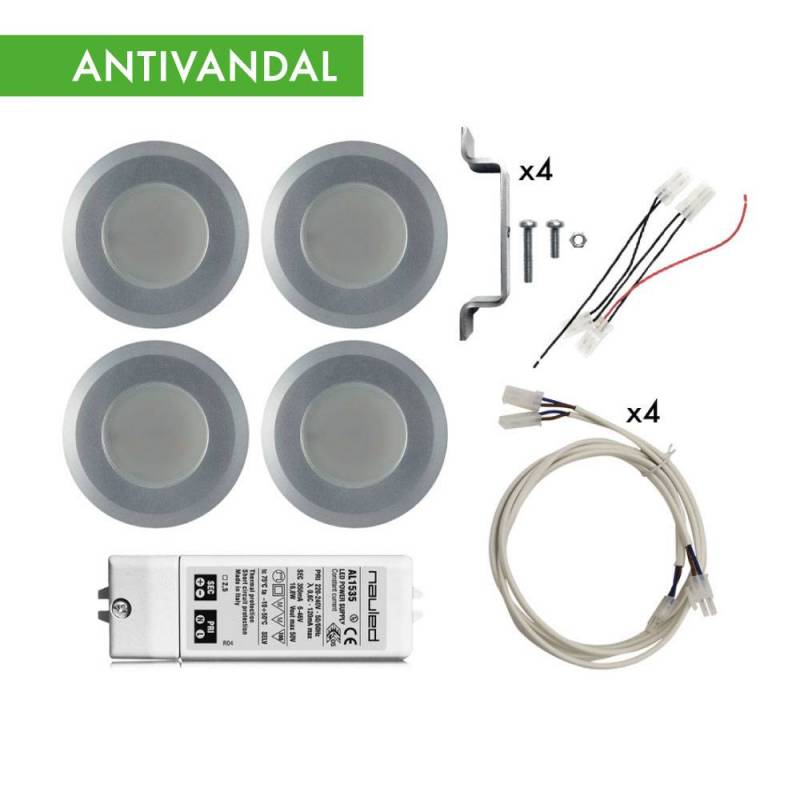

Kit 4 LED Spotlight Anti-vandal 5385 - ø 55 mm hole - 2,87 W + power supply, extentions and wiring
5385-AV LED spotlight kit, Anti-Vandal Cat. 2 certified, designed and developed for installation in elevator cabins. Easy ceiling mounting with bracket and fixing screws included.
Technical characteristics:
- 5385-AV round 12-LED recessed spotlight supplied with fixing kit
- 5 mm thick tempered glass
- Recessed hole Ø 55 mm
Electrical characteristics:
- Constant current supply: 350 mA
- Voltage: 8.2 V DC
- Power: 2.87 W
- Efficiency: 120 lm/W
MADE IN ITALY
Description
The 5385-AV Anti-Vandal LED spotlight is certified according to UNI EN 81-71:2005 CAT. 2, ensuring increased protection against vandalism and tampering without compromising lighting quality and efficiency.
Technical characteristics:
- Recessed hole Ø 55 mm
- METALCORE printed circuit board with 12 CREE LEDs
- Solid aluminum body
- 5 mm thick tempered glass
- Fixing kit including bracket, screws and nut
Electrical characteristics:
- Constant current supply: 350 mA
- Voltage: 8.2 V DC
- Power: 2.87 W
- Efficiency: 120 lm/W
- Energy efficiency class: C
- Protection rating: IP20
- Insulation class: III
Note: The characteristics listed refer to the single LED spotlight.
Color temperatures:
- Warm white 2700 K
- Warm white 3000 K
- Neutral white 4000 K
CRI: >80 – CRI >90 option available.
Ready-to-use kits complete with:
- 4 anti-vandal LED spotlights
- Wiring
- 1 m extension cables
- DC power supply
The two-spotlight kit can be combined with EL6171 or EML6061 emergency kits.
Technical characteristics
Height
23 mm
View Angle
120°
Energy Class
C
D
E
D
E
Max Current
350 mA
CRI
> 80
Ring Diameter
85 mm
Body Diameter
53 mm
Recessed hole diameter
55 mm
Efficiency
120 Lm/W
Finishing
Satin Aluminium
Luminous Flux
327 Lm
337 Lm
337 Lm
IP rating
IP20
Max Power
2,87 W
Color Temperature
Neutral white (4000° K)
Warm White (3000° K)
Warm White (3000° K)
Voltage
8,2 Vdc
Spotlight Type
Recessed
