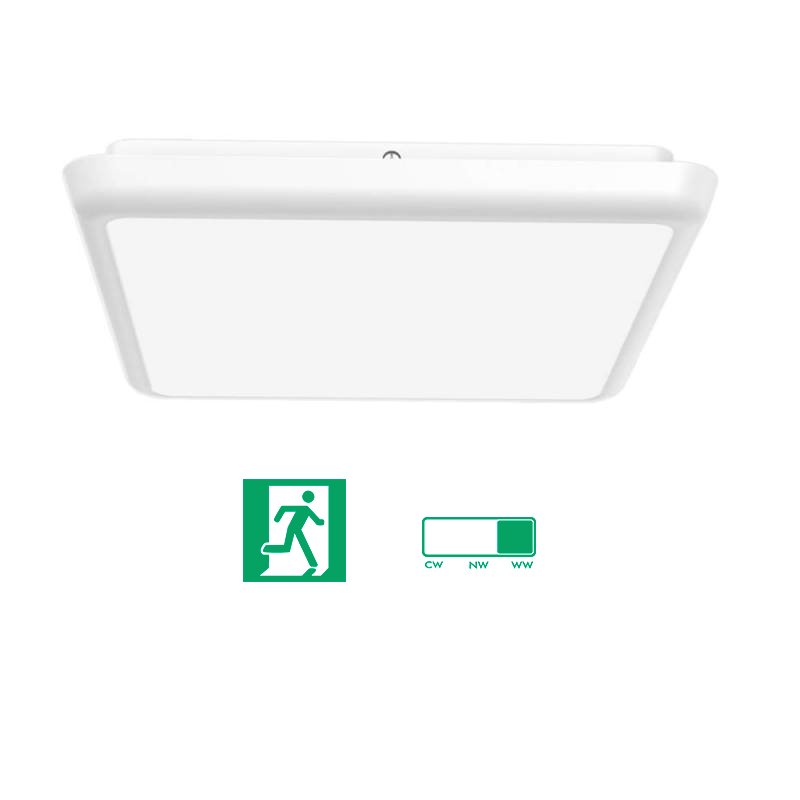

Square led ceiling light 250x250 mm - Integrated Emergency and CCT selection - 12 W
Zoom photo
  • Square led ceiling light 250x250 mm - Integrated Emergency and CCT selection - 12 W
  • Dimensions Square led ceiling light 250x250x50 mm
  • Square LED ceiling light 250x250 mm 12W - INTEGRATED EMERGENCY and CCT SELECTION
  • Square LED ceiling light 250x250 mm 12W - INTEGRATED EMERGENCY and CCT SELECTION
QLEDAL12-25-E-C3

SQUARE LED CEILING LIGHT 250x250 mm WITH EMERGENCY and SELECTABLE COLORS (CCT) -12 W

Square LED Ceiling Light with Emergency and Selectable Colors (CCT): Ideal for lighting in the elevator car. Uniform, natural light with opal diffuser. Waterproof, with emergency function and 3h battery and Selectable Colors (CCT) via slide switch.

Technical features:

  • Dimensions 250 mm x 250 mm
  • Height 54 mm
  • Square shape
  • Shell colour: white
  • Light angle 120°
  • IP54 rating

Built-in function:

  • Slide switch to set the chosen color temperature
  • 3 color temperatures available: 3000K, 4000K, 5700K
  • Device with emergency function and 3h battery
Secure payments
Secure payments
Fast shipping
Fast shipping
Return policies
Return policies
Description

The square LED ceiling light with Selectable Colors (CCT) is ideal for installation in the elevator car, offering elegance and functionality. With a power of 12 W and a white opal diffuser, it guarantees natural and uniform light over the entire surface, ensuring optimal lighting with low energy consumption. The waterproof structure also maKes it perfect for dust-prone environments.

Technical features:

  • Nominal life over 50,000h
  • CRI>80 color rendering
  • Integrated emergency device
  • Selectable Colors (CCT)
  • Integrated power supply

Electrical Characteristics:

  • Power 12 W
  • Typical flow 1160 Lm / 1350 Lm
  • Rated voltage 230 Vac

Selectable Color Temperature (CCT):

  • Slide switch to set the chosen color temperature
  • Warm White 3000K
  • Cool White 5700K
  • Neutral White 4000° K

Emergency:

  • The emergency function automatically switches between power failure and power restoration
  • 6.4V 1500mAh (LiFePO4) battery
  • Battery life: 3 hours at 3W±0.5W
  • Charging period: 24 hours
Technical characteristics
Height
54 mm
View Angle
120°
CRI
> 80
Dimensions
25x25 cm
Luminous Flux
1160~1350 Lm
Shape
Square
IP rating
IP54
Power
12 W
Color Temperature
Cold White (5700°K)
Neutral white (4000° K)
Warm White (3000° K)
Voltage
230 Vac
Integrated Functions
Emergency
Selectable Colors (CCT)
Download documents
Instruction QLEDAL12 Mounting Instructions LED Ceiling Light QLEDAL12 model
LED Cieling QLEDAL12-25-E-C3 Data sheet LED ceiling light QLEDAL12-25-E-C3 (emergency, CCT)
