AL7524DP

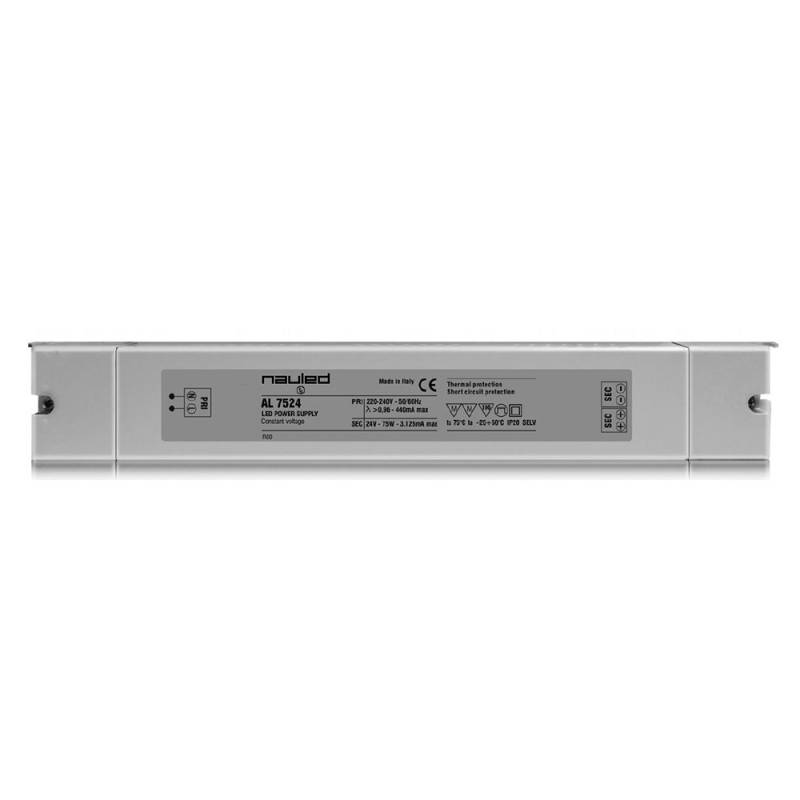

AL7524/DP LED dimmable power supply - CV 24 V - 75 W
Independent constant voltage LED power supply with active power factor correction. Reliable, efficient and ideal for powering LEDs. It integrates protections against short circuit, overload, open circuit, thermal and surge up to 4 KV.
- Independent driver
- Active PFC
- Constant voltage version for LED models
- Degree protection, IP20
- DALI, Push, 1-10V, 0-10V dimmable
- Screwless terminals connection IN and OUT, 2,5mmq
- Terminals connection controls 1,5mmq
- Class II protection
- Surge protection 4KV diffrential mode
- Short circuit, overload, open circuit and thermal protection
- High efficiency and absolute reliability
- Output ripple voltage <3%
- THD <15%
- Normal life-time up to 50.000 h at tc max
- Complying with EN61347-2-13, EN61347-1, EN62384, EN55015, EN61000-3-2, EN61547
MADE IN ITALY
Description
DATASHEET - AL7524P:
- Mains current: 440 mA
- Power factor: >0,96
- Max output current: 3125 mA
- Output power: 24 V
- Max output voltage: 26 V
- Output power: 75 W
- Mains voltage AC: 220-240 V
- Mains voltage DC: 176-276 V
- Mains frequency: 0/50/60 Hz
- Ambient temp. Ta: -25 ÷ 50° C
- Weight: 0,23 kg
MADE IN ITALY
Technical characteristics
Class protection
II
Supply current
440 mA
Output Current
3125 mA
Dimensions
280x40,2x29 mm
Rated Life
50.000 h
Power Factor
>0,96
Mains Frequency
0/50/60 Hz
IP rating
IP20
Weight
230 g
Output voltage
75 W
Regulation CC/CV
Constant Voltage
Ambient Temperature Ta
-25 ÷ +50 °C
Max case Temperature on Tc
75°
Mains Voltage AC
220-240 V
Mains voltage DC
176-276 V
Output Voltage
24 V
Max Output Voltage
26 V
LED Driver Type
Dimmerabile
