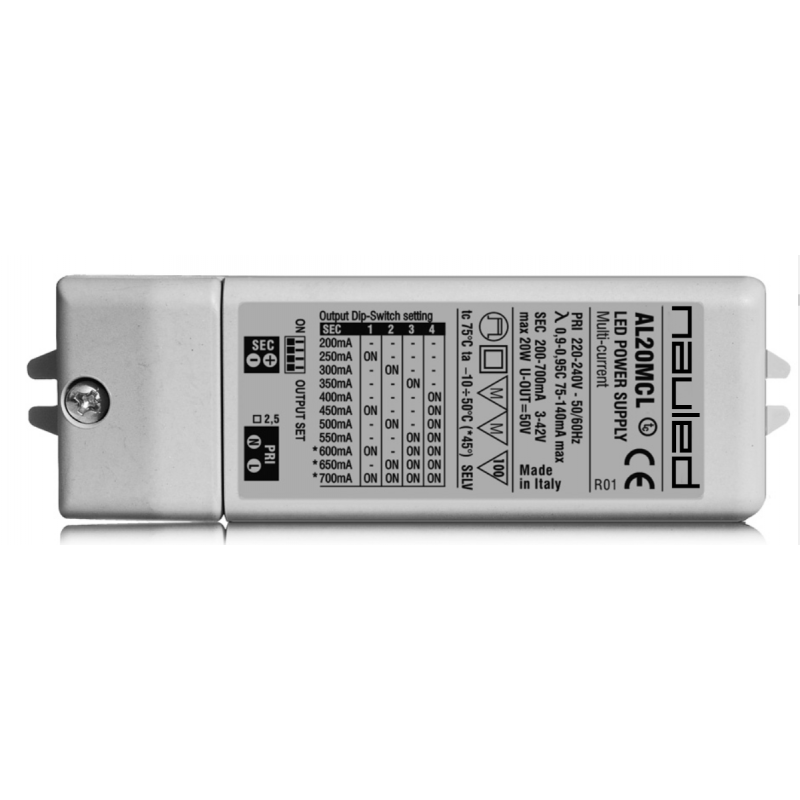

AL20MCL
AL20MCL SERIES - LED Power Supply multicurrent CC 100-350 mA
Independent multi-power constant current LED power supply. Reliable, efficient and ideal for powering LEDs. It integrates protections against short circuit, overload, open circuit, thermal and surge up to 1 KV.
- Independent driver
- Active PFC
- Multi-power adjustable version dip-switch, constant current for power LED
- Typical ripple current >3%
- THD <15%
- Degree protection, IP20
- IN screwable terminals connection 2,5mmq
- OUT screwable terminals connection 1,5mmq
- Class II protection
- Surge protection 1KV diffrential mode
- Short circuit, overload, open circuit and thermal protection
- Normal life-time up to 50.000 h at tc max
- Complying with EN61347-2-13, EN61347-1, EN62384, EN55015, EN61000-3-2, EN61547
- Suitable for operation at 2V
MADE IN ITALY
Description
CHARACTERISTICS:
- AC voltage: 220 - 240 V
- DC voltage: 176 - 276 V
- Output voltage: 3-42 V
- Max no-load voltage: 50 V
- Power frequency: 0 / 50 / 60 Hz
- Power current: 100 to 350 mA
- Output current: 100 to 350 mA
- Output power: 4.2 to 14.7 W
Technical characteristics
Mains Frequency
0/50/60 Hz
Weight
95 g
Regulation CC/CV
Costant Current
Ambient Temperature Ta
-25 ÷ +50 °C
Max case Temperature on Tc
75°
Mains Voltage AC
220-240 V
Mains voltage DC
176-276 V
