NN/AD-SA

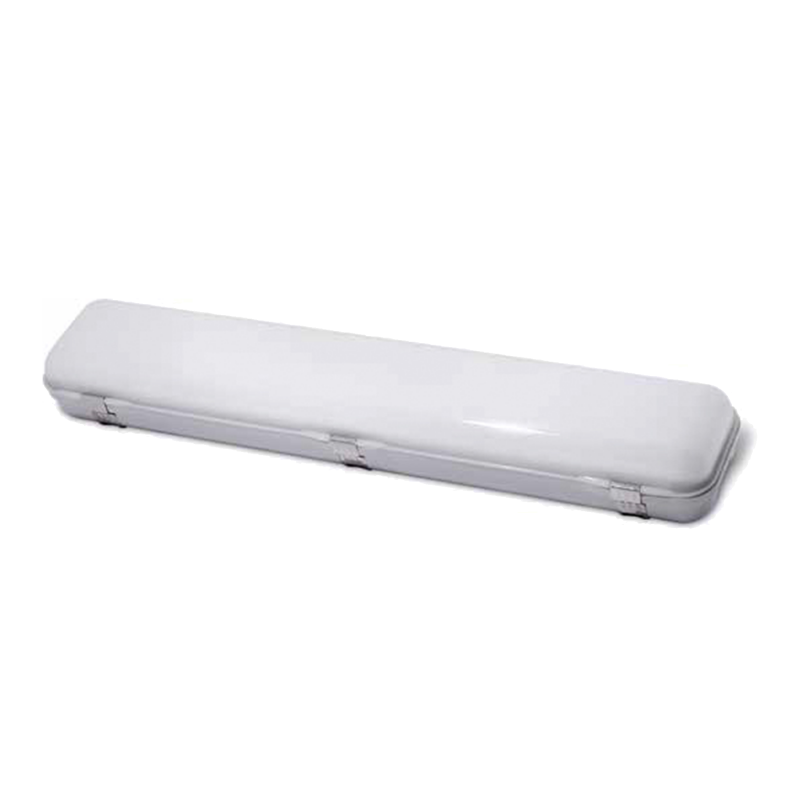

NETTUNO PLUS EMERGENCY LED LAMP - SELF-DIAGNOSIS SE/SA
LED emergency luminaire ideal for machine rooms, lifts. Made of self-extinguishing V2 polycarbonate, injection molded, reflector for components in pre-painted white sheet metal, closing hooks in glass nylon.
IP66, IK07 and CRI >80 protection
Photobiological risk: IEC 62471 – Exempt risk
Complies with European standards EN 60598-1, EN 60598-2-22
Technical features:
- Type of lamp: Self-diagnosis SE/SA
- Dimensions: 145x100x662 mm - 95x100x1272 mm - 95x100x1572 mm
- Ambient temperature: -25 / + 45° C
- Autonomy: 1 - 3 h
Description
This LED emergency luminaire is ideal for machine rooms, lifts. It offers 5000 K light, V2 self-extinguishing diffuser and robust construction with IP66 and IK08 rating.
Technical features:
- Autonomy: 1.5 - 3 h
- IP66 degree of protection
- Impact protection: IK08
- Voltage: 230V 50/60Hz
- Power: 12 - 21 - 23 - 28 - 37 - 60 W
- Luminous flux SE: 450 - 540 - 580 - 600 - 1120 - 1275 lm
- Luminous flux SA: 1500 - 2900 - 3080 - 4100 - 5600 - 8500 lm
- Insulation class I
Different models available
MODEL
POWER
AUTONOMY
Model: NN12/1 AD SA
Power: 12W
Autonomy: 1h
Model: NN12/3 AD SA
Power: 12W
Autonomy: 3h
Model: NN21/1 AD SA
Power: 21W
Autonomy: 1h
Model: NN21/3 AD SA
Power: 21W
Autonomy: 3h
Model: NN23/1 AD SA
Power: 23W
Autonomy: 1h
Model: NN23/3 AD SA
Power: 23W
Autonomy: 3h
Model: NN28/1 AD SA
Power: 28W
Autonomy: 1h
Model: NN28/3 AD SA
Power: 28W
Autonomy: 3h
Model: NN37/1 AD SA
Power: 37W
Autonomy: 1h
Model: NN37/3 AD SA
Power: 37W
Autonomy: 3h
Model: NN60/1 AD SA
Power: 60W
Autonomy: 1h
Model: NN60/3 AD SA
Power: 60W
Autonomy: 3h
Full power version available: luminous flux 100% SA- 100% SE
