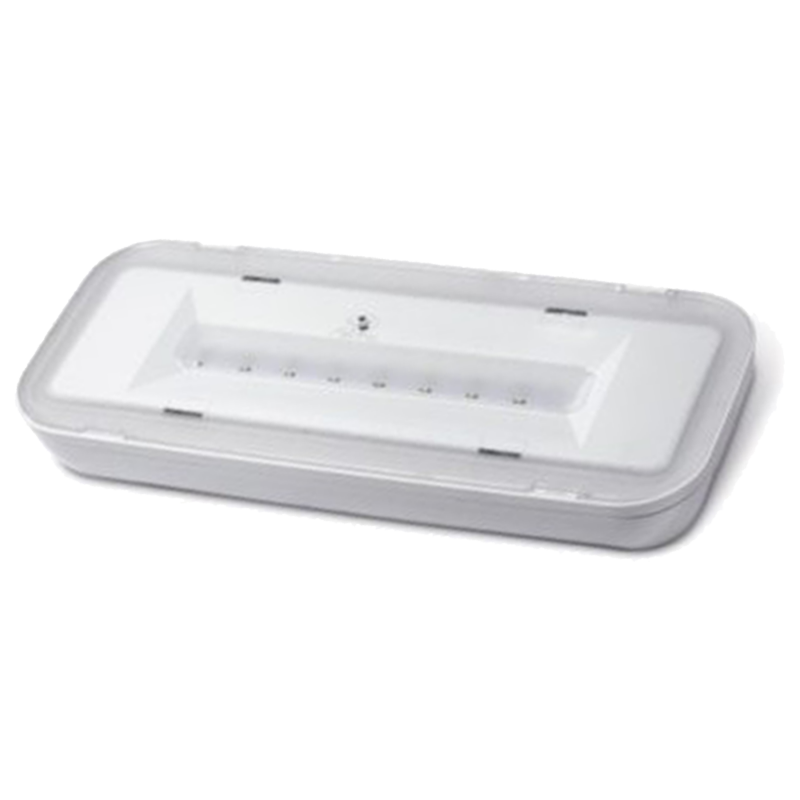

NOA EMERGENCY LED LAMP - EMERGENCY + ALWAYS ON
NOA emergency lighting fixture with high-efficiency LEDs and symmetrical optics for uniform light. Ideal for elevator cars. It has Emergency + Always On (SE + SA) function, IP42 protection.
Lamp body made of self-extinguishing plastic material (CEI EN 60598-1, UL 94 standards)
Built according to CEI EN 60598-2-22
Built to EN62471 - Group O
Available in different equivalent powers: 8W, 11W, 18W, 24W, 32W
Technical features:
- Lamp type: Emergency + Always On
- Dimensions: 125x295x40 mm
- Ambient temperature: 0 - 40° C
- Autonomy: 1.5 - 3 h
The NOA emergency lamp uses very high efficiency LEDs with symmetrical optics to ensure a uniform light beam and powerful flows in compact dimensions. Ideal for elevator cars, it is available in the Emergency + Always On version (SE + SA) with autonomy 1.5 h or 3 h. Hight mechanical resistance (IK07), IP42, Class II insulation, can be installed in multiple configurations.
Lamp body made of self-extinguishing plastic material (CEI EN 60598-1, UL 94 standards)
Technical features:
- Charging time: 24h
- Autonomy: 1.5 - 3 h
- Voltage 230V 50Hz +/- 15%
- Equivalent power 8 - 11 - 18 - 24 - 32 W
- Power consumption 2 - 2.3 - 4 - 4.6 - 4.8 - 5.6 - 6.5 - 7 - 7.2 - 7.5 W
- Luminous flux 100 - 200 - 250 - 300 - 440 lm
- IP42 degree of protection
- Impact protection: IK07
- Insulation class II
