NSTR_2835-24V-16,8W-200L-X

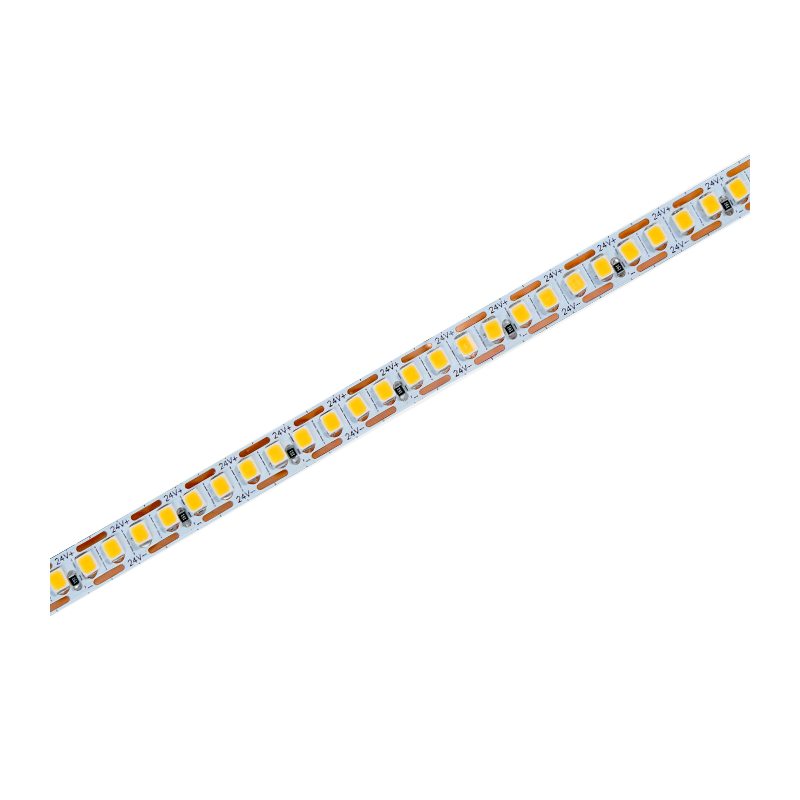

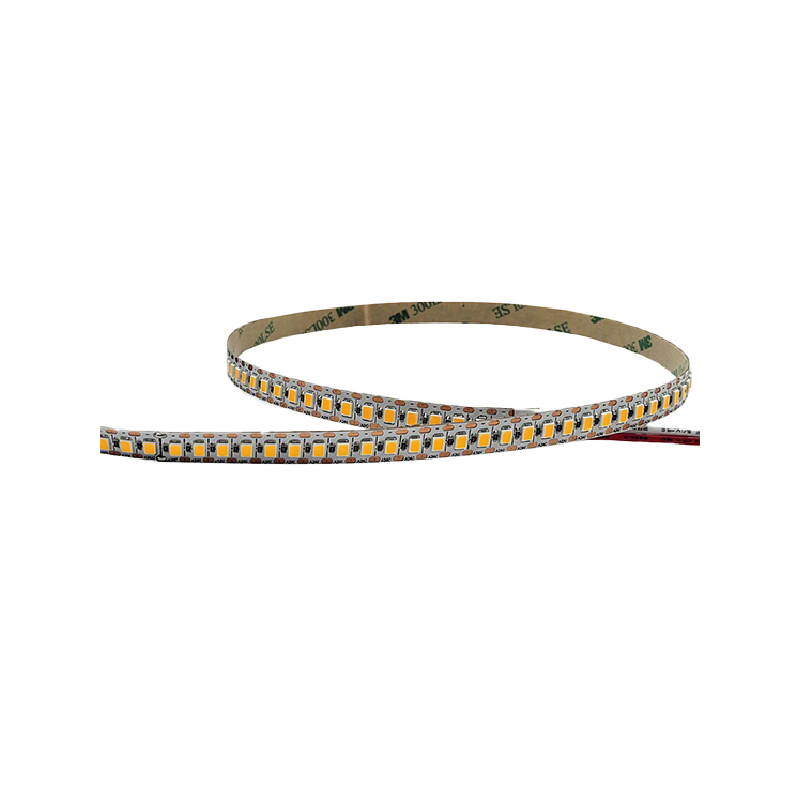

LED Strip 2835 24V - 200Led/m - 16,8W - 8mm - IP20 - Ra90
The NSTR 2835 LED Strip: professional solution, thanks to low consumption of only 16.8 W per meter. It offers up to 3 times more light output than common household LED strips, ensuring uniform, intense light with no visible dots. With a narrow width and modular cut every 5 mm, it adapts precisely to any project and space.
Technical features:
- 25 m reel
- N° Led 200 Led/m
- Pcb Width 8mm
- Energy Class E
- Dimmable
Description
The NSTR 2835 LED Strip is the professional solution, thanks to low consumption of only 16.8 W per meter. It offers up to 3 times more light output than common domestic LED strips, ensuring uniform, intense light with no visible dots thanks to its density of 200 LEDs/m. With a narrow width and ultra-low modular cut every 5mm, it adapts precisely to any project and space. Always dimmable, it allows the adjustment of the light intensity and ensures excellent colour rendering.
Technical features:
- Reel 25 mt
- N° Led 200 Led/m
- Cutting Unit 1led/5mm
- Pcb Width 8mm
- Operating temperature from -20°C to + 45°C
- Critical temperature: 75°C (max)
- IP20 degree of protection
- CRI Ra>90
- SDCM ≤3
Electrical Characteristics:
- Voltage DC24V
- Power 16.8 W/m
- Flow 2100 lm/m - 2210 lm/m - 2330 lm/m
Color Temperature:
- 2700K - Flux: 2100 lm/m
- 3000K - Flux: 2210 lm/m
- 4000K - Flux: 2330 lm/m
Installation and Use:
- To be combined with aluminum profiles for optimal heat dissipation
- Can be dimmed with special controllers
Technical characteristics
Energy Class
E
CRI
>90
Luminous Flux
2100 lm/m
2210 lm/m
2330 lm/m
2210 lm/m
2330 lm/m
IP rating
IP20
Pcb Width
8 mm
Reel Length
25 m
N° LED
200led/m
Power
16,8W/m
Led Format
2835
Cut
1 led/ 5 mm
Color Temperature
Neutral white (4000° K)
Warm White (2700°K)
Warm White (3000° K)
Warm White (2700°K)
Warm White (3000° K)
Operation Temperature
da -20° a +45° C
Voltage
24 V
