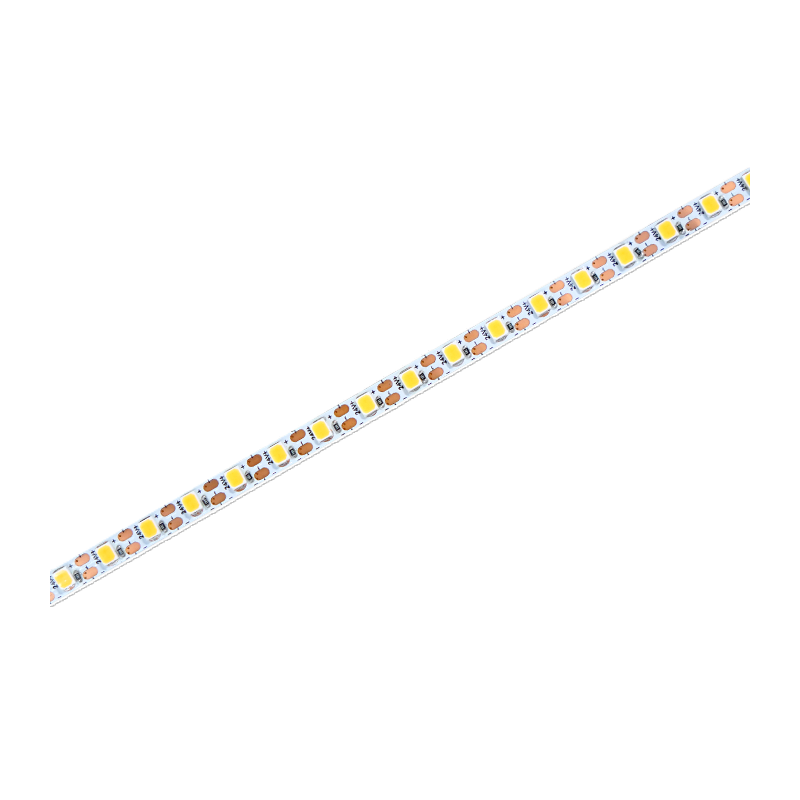

LED Strip 2835 24V 120Led/m 9,6W 5mm 1350lm/m IP20

The N8120 LED Strip is the professional solution, thanks to its efficiency of up to 141 lm/W and low consumption of only 9.6 W per meter. It offers a light output up to 3 times higher than common domestic LED strips, ensuring uniform, intense light without visible dots thanks to the density of 120 LEDs / m. With a narrow width and modular cut every 8 mm, it adapts precisely to any project and space, even the smallest ones. Always dimmable, it allows the adjustment of the light intensity and ensures excellent colour rendering.

Technical features:

• Reel 5 mt
• N° Led 120 Led/m
• Cutting Unit 1 LED/8.33mm
• Pcb Width 5mm
• Operating temperature from -25°C to + 40°C
• Critical temperature: 75°C (max)
• IP20 degree of protection
• CRI Ra>90

Electrical Characteristics:

• Voltage DC24V
• Power 9.6 W/m
• Flow 1085 lm/m - 1250 lm/m - 1295 lm/m - 1305 lm/m - 1335 lm/m - 1350 lm/m
• Efficiency 113 lm/W - 130 lm/W - 135 lm/W - 136 lm/W - 139 lm/W - 141 lm/W

Color Temperature:

• 2300K - Flux: 1085 lm/m - Efficiency: 113 lm/W
• 2700K - Flux: 1250 lm/m - Efficiency: 130 lm/W
• 3000K - Flux: 1305 lm/m - Efficiency: 136 lm/W
• 3500K - Flux: 1335 lm/m - Efficiency: 139 lm/W
• 4000K - Flux: 1350 lm/m - Efficiency: 141 lm/W
• 6000K - Flux: 1295 lm/m - Efficiency: 135 lm/W

Installation and Use:

• To be combined with aluminum profiles for optimal heat dissipation
• Can be dimmed with special controllers
• Requires 24V LED power supply (driver) not included in the package
