PL3116

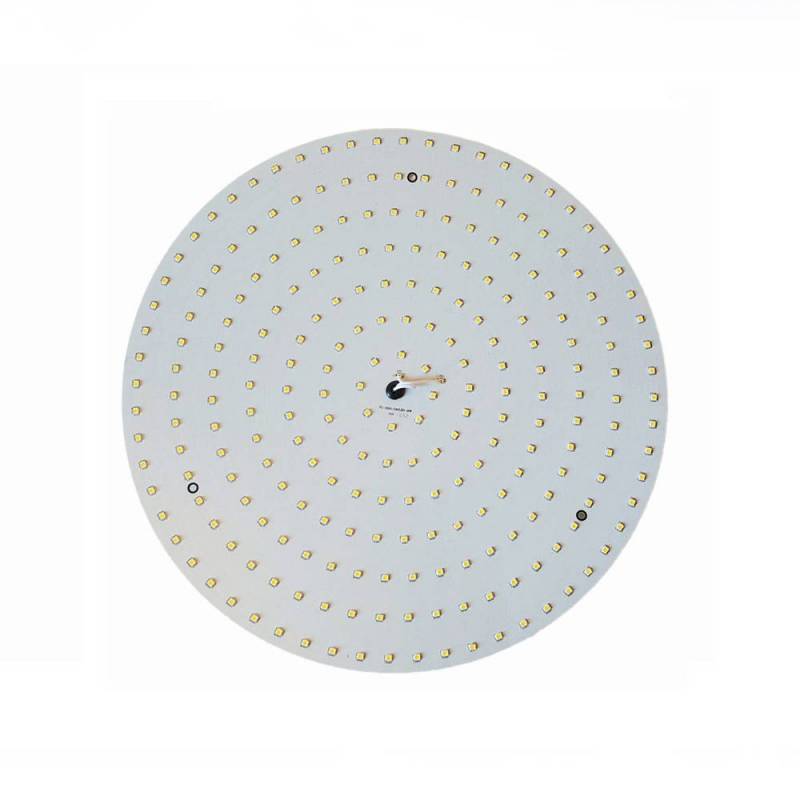

Round LED Plate for retrofit Ø310mm - 240 Led
Round LED plate Ø310mm, ideal solution for renewing lighting in lifts, elevators and freight elevators. It guarantees energy savings of up to 70%, 4000K neutral white light, power supply included and emergency kit available.
Technical features:
- Dimensions: Ø310mm
- Number of LEDs: 240
- Round shape
- Light Angle: 110°
- 3 fixing holes on the edges and power cable with 3.5mm jack socket
- AL1570 POWER SUPPLY INCLUDED
- Emergency operation kit available
MADE IN ITALY
Description
The Round LED Plate is the ideal solution for renewing the lighting of lifts, elevators and freight elevators, replacing traditional ceiling lights or neon tubes. Modernization not only improves performance and comfort, but also allows energy savings of up to 70%, increasing the value of the building.
Technical features:
- Dimensions: Ø310mm
- Number of LEDs: 240
- Round shape
- Light Angle: 110°
- Fixing Mode: 4MA Screws
- Power cable with 3.5mm jack socket
- AL1570 POWER SUPPLY INCLUDED
- Emergency operation kit available
Electrical Characteristics:
- Nominal voltage 22.85 Vdc
- Power 16 W
- Current 700 mA
- Flow 1600 lm
Color Temperature:
- Neutral White (4000K)
Technical characteristics
View Angle
110°
Max Current
700 mA
Dimensions
31 Ø cm
Luminous Flux
4200 Lumen
Shape
Round
Fixing Mode
screw 4ma
N° LED
240
Power
16 W
Color Temperature
Neutral white (4000° K)
Voltage
22,85 Vcc
