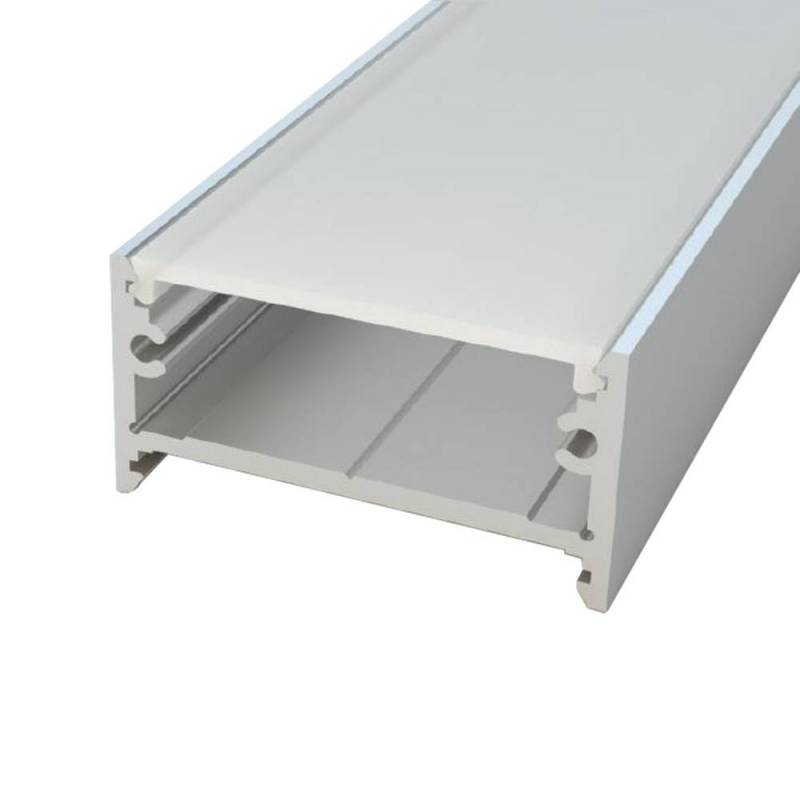

Aluminium LED Profile NP024
Zoom photo
  • Aluminium LED Profile NP024
  • Dimensions LED Profile NP024 30,8x16 mm
  • Finishes LED Profile NP024
  • Cover LED Profile NP024
  • Tappi LED Profile NP024
  • Aluminium LED Profile NP024
  • Aluminium LED Profile NP024
  • Aluminium LED Profile NP024
NP024

NP024 Aluminum LED Profile

Extruded aluminum LED profile, guarantees optimal heat dissipation, durability and an elegant design. Available in different finishes and customizable.

Technical features:

  • Resistant extruded aluminum LED profile
  • Section dimensions of 30.8 mm x 13 mm - Usable interior 21 mm
  • Standard length 2 meters or 3 meters, with the possibility of cutting to size
  • Profile Height Range 11-20mm
  • Profile Width Range 21-30mm
  • Dissipation Capacity: recommended for use for LED strips up to 35 W/m
  • Rectangular Profile Shape
  • Type of application: Wall
  • Available finishes: Anodized Aluminum - White Painted - Black Painted
  • Type of covering: Flat Opal - PMMA Opal - Flat Black PMMA - Flat Prismatic Transparent - High PMMA Opal

The following accessories are available:

  • Fixing Clips:
    - Brass fixing washers
    - Kit consisting of N.1 Adjustable fixing clip N.2 small washers
    - Kit consisting of: n.1 corner joint in raw aluminum n.2 M8x8 pointed screws in stainless steel
  • Blanking Caps:
    - Plastic, available with or without cable hole
    - Metal, available with or without cable hole suitable for any available cover

We create custom finished product solutions complete with LED strip, power cable and Led driver.

MADE IN ITALY

Profile Color: Anodized Aluminium
Profile Cover: Opal Polycarbonate
Secure payments
Secure payments
Fast shipping
Fast shipping
Return policies
Return policies
Description

The NP024 aluminum LED profile is made of extruded aluminum, it ensures optimal thermal dissipation, increasing the useful life of the LEDs and improving light performance.

Key features:

  • Heat Dissipation: Aluminum provides efficient thermal management, extending the life of the LEDs
  • Protection: The profile protects the LED strips from dust, moisture, and impacts
  • Aesthetics: Offers a clean and professional look, improving integration within elevator cars
Technical characteristics
Profile Height
11-20 mm
Application
Ceiling
LED Profile Dimensions
30,8x16 mm
Finishing
Black
Satin Aluminium
White
Profile Shape
Rettangolare
Profile Width
21-30 mm
Max length bar
3 m
Utilizzo
con Strip Led fino a 35 W/m
Download documents
Led Profile NP024 Data Sheet Led Profile NP024
