NP010

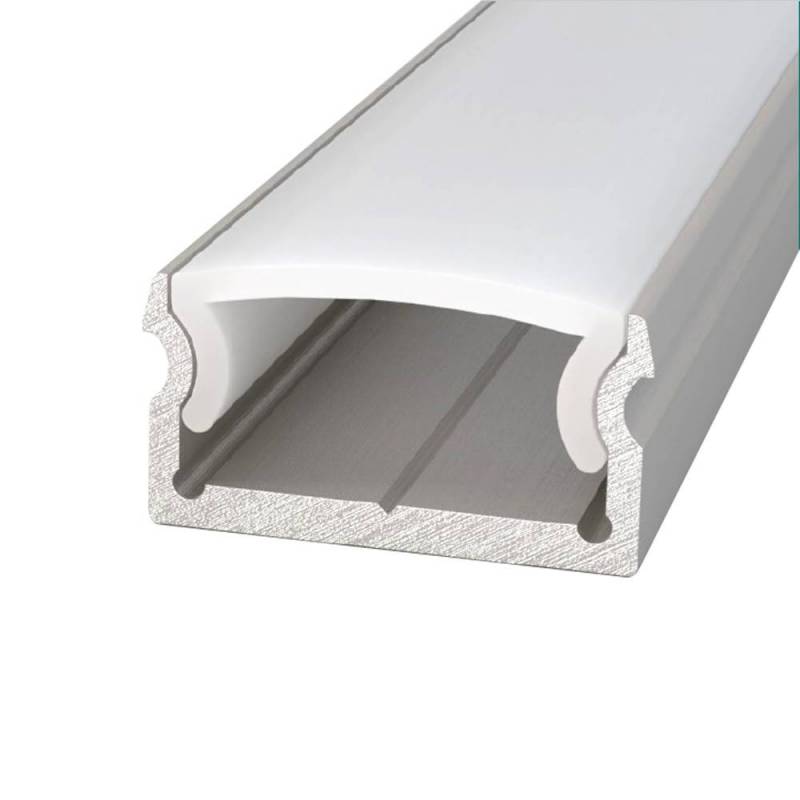

NP010 Aluminum LED Profile
Extruded aluminum LED profile, guarantees optimal heat dissipation, durability and an elegant design. Available in different finishes and customizable.
Technical features:
- Resistant extruded aluminum LED profile
- Section size of 14.8 mm x 7.8 mm - Inner 6 mm
- Standard length 2 meters or 3 meters, with the possibility of cutting to size
- Profile Height Range 0-10mm
- Profile Width Range 11-20mm
- Dissipation Capacity: recommended for use for LED strips up to 12 W/m
- Rectangular Profile Shape
- Type of application: Ceiling - Wall
- Available finishes: Anodized Aluminum - White Painted - Black Painted
- Type of cover: Flat Opal - Flat Transparent
For complete and professional installation, the following accessories are available:
- Luminum clip for wall mounting - L. 100 mm - hole 6 mm
- n.2 Luminum clips for fixing - L.50 mm - hole Ø1,6 mm
- Plastic caps and clips, available with or without cable hole
We create custom finished product solutions complete with LED strip, power cable and Led driver.
MADE IN ITALY
Description
The NP010 aluminum LED profile is made of extruded aluminum, it ensures optimal thermal dissipation, increasing the useful life of the LEDs and improving light performance.
Key features:
- Heat Dissipation: Aluminum provides efficient thermal management, extending the life of the LEDs
- Protection: The profile protects the LED strips from dust, moisture, and impacts
- Aesthetics: Offers a clean and professional look, improving integration within elevator cars
Technical characteristics
Profile Height
0-10 mm
Application
Recessed
Wall
Wall
LED Profile Dimensions
14,8x7,8 mm
Finishing
Black
Satin Aluminium
White
Satin Aluminium
White
Profile Shape
Rettangolare
Profile Width
11-20 mm
Max length bar
2 m
3 m
3 m
Utilizzo
con Strip Led fino a 12 W/m
