NP166

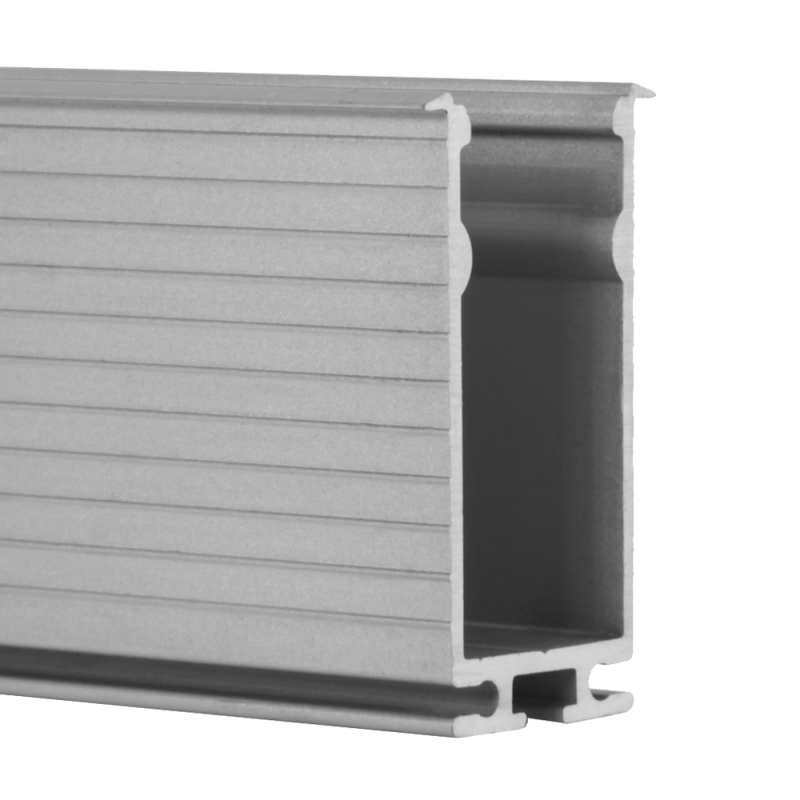

NP166 Aluminum LED Profile
Extruded aluminum LED profile guarantees optimal heat dissipation, durability and an elegant design. Available in different finishes and customizable.
Technical features:
- Resistant extruded aluminum LED profile
- Section dimensions of 35 mm x 20 mm
- Standard length 2 meters, with the possibility of cutting to size. On request Length 3 meters
- Profile Height Range 31- 40mm
- Profile Width Range 11- 20mm
- Rectangular Profile Shape
- Type of application: Built-in - Ceiling
- Available finishes: Anodized aluminum
- Type of cover: Flat Opal - Rounded Opal - Flat Transparent - 40° Lens
We create custom finished product solutions complete with LED strip, power cable and Led driver.
MADE IN ITALY
Description
The NP166 aluminum LED profile is made of high-quality extruded aluminum, it ensures optimal thermal dissipation, increasing the useful life of the LEDs and improving light performance.
Key features:
- Heat Dissipation: Aluminum provides efficient thermal management, extending the life of the LEDs
- Protection: The profile protects the LED strips from dust, moisture, and impacts
- Aesthetics: Offers a clean and professional look
For complete and professional installation, the following accessories are available:
- Plastic Fixing Clip
- Steel Fixing Clip
- Plastic Blanking Caps
- Rounded Plastic Blanking Caps
- Plastic End Caps 40° Lens
Technical characteristics
Profile Height
31-40 mm
Application
Recessed
Cover Dimensions 40° Lens
8,3x14,2 mm
Cover Dimensions Satin and Transparent
5,2x14,8 mm
Cover dimensions Rounded
7,4x12,3 mm
LED Profile Dimensions
35x20 mm
Finishing
Satin Aluminium
Profile Shape
Rettangolare
Profile Width
11-20 mm
Max length bar
3 m
