NP172

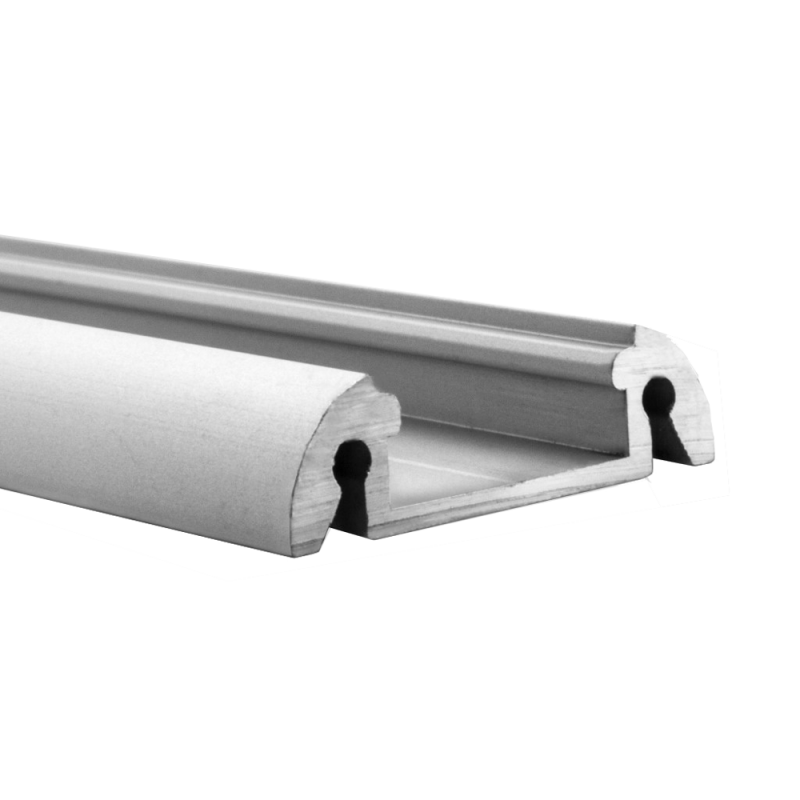

NP172 Aluminum LED Profile
Extruded aluminum LED profile guarantees optimal heat dissipation, durability and an elegant design. Available in different finishes and customizable.
Technical features:
- Resistant extruded aluminum LED profile
- Section dimensions of 7 mm x 25 mm
- Standard length 2 meters, with the possibility of cutting to size. On request Length 3 meters
- Profile Height Range 0-10mm
- Profile Width Range 21-30mm
- Rectangular Profile Shape
- Type of application: Ceiling
- Available finishes: Anodized Aluminum - Black Painted
- Type of cover: Flat Opal - Flat Transparent - Rounded Opal - 40° Lens
We create custom finished product solutions complete with LED strip, power cable and Led driver.
MADE IN ITALY
Description
The NP172 aluminum LED profile is made of high-quality extruded aluminum, it ensures optimal thermal dissipation, increasing the useful life of the LEDs and improving light performance.
Key features:
- Heat Dissipation: Aluminum provides efficient thermal management, extending the life of the LEDs
- Protection: The profile protects the LED strips from dust, moisture, and impacts
- Aesthetics: Offers a clean and professional look
For complete and professional installation, the following accessories are available:
- Magnetic kit
- Plastic Blanking Caps
- Rounded Plastic Blanking Caps
- Plastic End Caps 40° Lens
Technical characteristics
Profile Height
0-10 mm
Application
Ceiling
Cover Dimensions 40° Lens
8,3x14,2 mm
Cover Dimensions Satin and Transparent
5,2x14,8 mm
Cover dimensions Rounded
7,4x12,3 mm
LED Profile Dimensions
7,2x25x12,2 mm
Finishing
Black
Satin Aluminium
Satin Aluminium
Profile Shape
Rettangolare
Profile Width
21-30 mm
Max length bar
3 m
