NPHT512020840

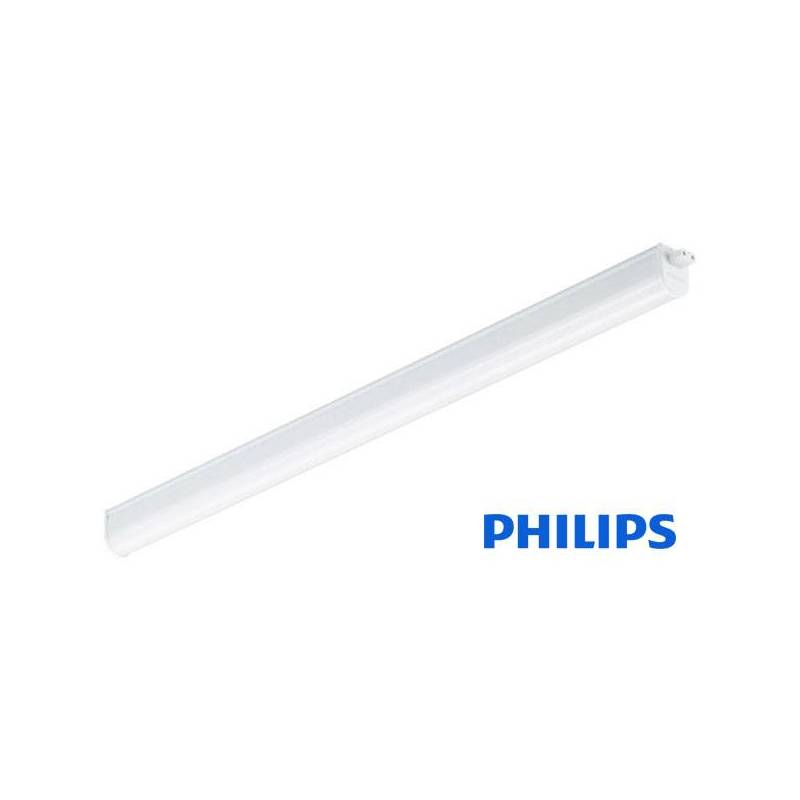

LED T5 Reglette - 20 W - Length 1200 mm
LED T5 reglette: compact and durable, ideal for elevator cabins. Easy installation with removable cover and the possibility to connect to 10 battens in series.
Technical characteristics:
- Body Material: Polycarbonate
- Dimensions: 1186 mm × 28.4 mm × 35.7 mm
- Socket: G13
- Beam angle: 174°
- Insulation class: II
- IP rating: IP20
Description
The LED T5 reglette is the ideal solution for lighting inside elevator cabins. Made with a compact polycarbonate housing, it ensures quality and reliability at a competitive price. Installation is simple and intuitive thanks to the removable cover, and it allows up to 10 battens to be connected in series, providing uniform and continuous lighting.
Technical characteristics:
- Body Material: Polycarbonate
- Socket: G13
- Dimensions: 1186 mm × 28.4 mm × 35.7 mm
- Beam angle: 174°
- Operation temperature: from –20 °C to +40 °C
- IP rating: IP20
- Insulation class: II
- Color rendering index: CRI >80
Electrical characteristics:
- Power: 20 W
- Luminous flux: 2100 lm
- Efficacy: 105 lm/W
- Voltage: 220–240 V
- Mains Frequency: 50 or 60 Hz
Color temperature:
- Neutral white 4000 K
Technical characteristics
View Angle
174°
Connection
G13
Class protection
II
CRI
> 80
Dimensions
326x28,4x35,7 mm
Efficiency
105 Lm/W
Luminous Flux
2100 Lm
Mains Frequency
50/60 Hz
IP rating
IP20
Lenght
1186 mm
Weight
205 g
Power
20 W
Color Temperature
Neutral white (4000° K)
Operation Temperature
da -20° a +40° C
Voltage
220-240 V
