NRT5150-YC3

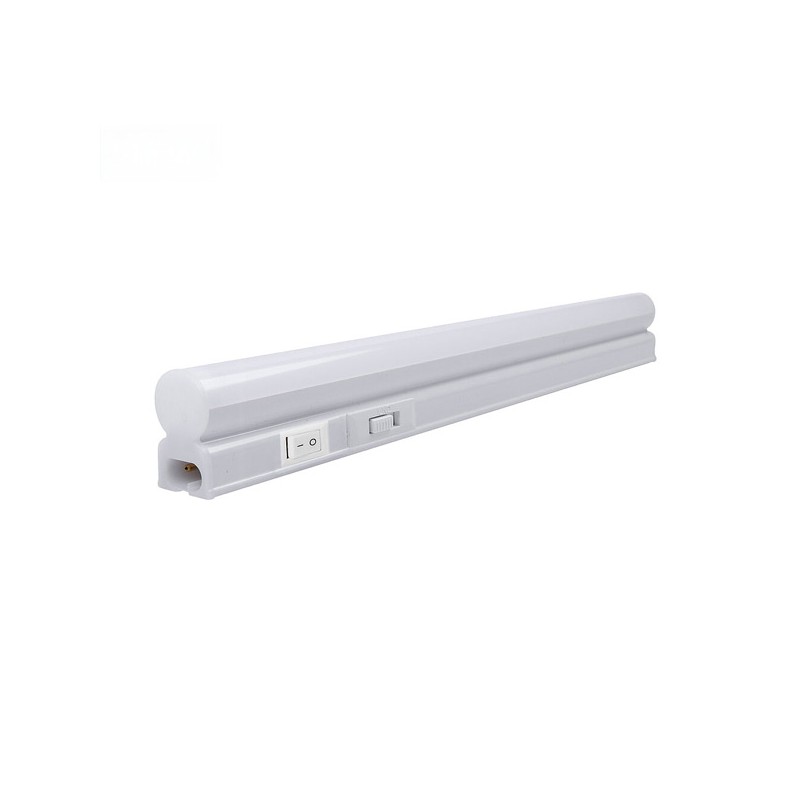

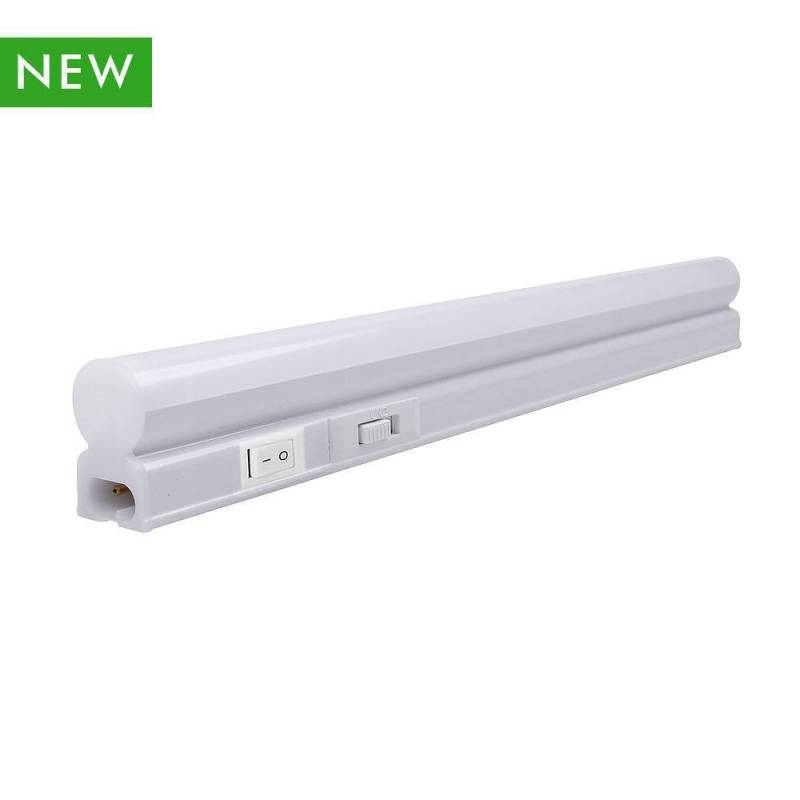

LED Reglette T5 CCT 3000 K / 4500 K / 6000 K - 22 W - 1478 mm
T5 LED Reglette, ideal for installation in elevator cabins, for easy replacement of old fluorescent tubes or for ceiling backlighting. Equipped with ON/OFF switch and CCT selector to choose the desired color temperature. Easy to install, compact and with a discreet design, it is the ideal solution for uniform and high-performance lighting, ensuring low energy consumption and long service life.
Technical characteristics:
- Dimensions: 34 mm × 23 mm × 1478 mm
- Beam angle: 120°
- Energy class: E
- Insulation class: II
- IP rating: IP20
- non-dimmable
Included in the package:
- 1500 mm power cable
- 150 mm interconnection cable
Description
The T5 LED Reglette with switch and CCT technology is the ideal solution for upgrading lighting inside elevator cabins in an efficient and energy-saving way. Thanks to the CCT function and the slide switch, the most suitable color temperature can be selected according to customer needs, choosing between warm, neutral, or cool light to ensure maximum visual comfort. Installation is quick and easy, making it perfect for both new installations and replacements in existing systems.
Technical characteristics:
- Dimensions: 34 mm × 23 mm × 1478 mm
- Beam angle: 120°
- Rated life: 25,000 h
- Ambient temperature: from –20 °C to +45 °C
- IP rating: IP20
- Insulation class: II
- Energy class: E
- non-dimmable
Electrical characteristics:
- Power: 22 W
- Luminous flux: 2600 lm
- Voltage: 220–240 V
Adjustable color temperature (CCT):
- 3000 K
- 4500 K
- 6000 K
Note: For connecting multiple fixtures, use the supplied interconnection cable. Battens with different power ratings can be connected to a total load of 220 W.
Technical characteristics
View Angle
120°
Class protection
II
Energy Class
E
Luminous Flux
2600 Lm
IP rating
IP20
Lenght
1478 mm
Power
22 W
Color Temperature
CCT (3000° K, 4000° K, 6500° K)
Voltage
220-240 V
