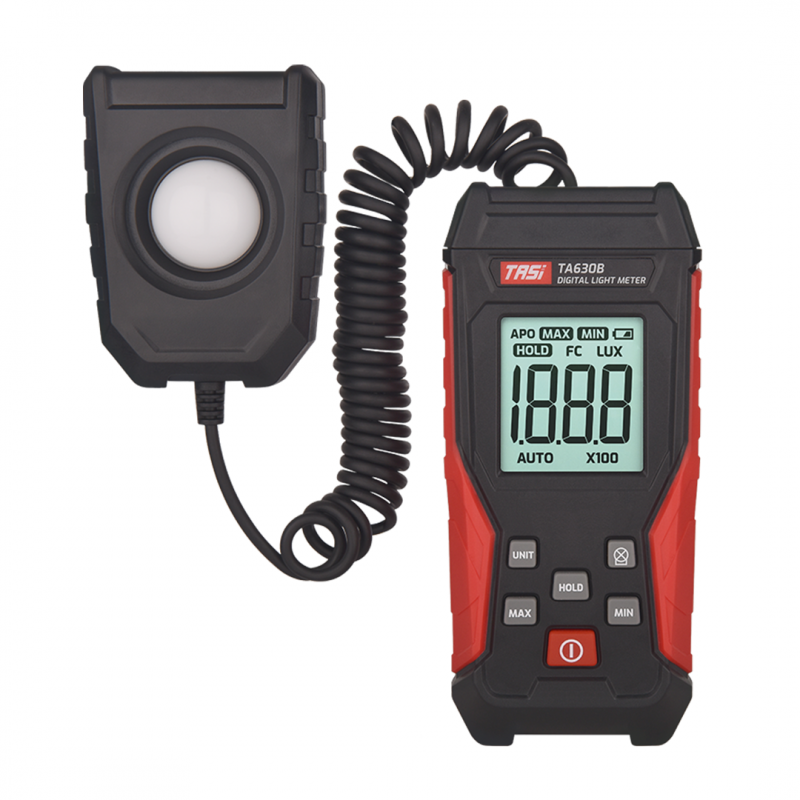

Digital Lux Meter – Light Intensity Measurement Tester - TA630B
Reference: TA630B
Product ideal for elevator operators
Photometric Light Meter for Digital and Professional Lighting Tests
The TA630 is a digital lux meter designed to offer high safety, reliability, and precision.
Compact and portable, it is ideal for use in any environment.
This model features a detachable light sensor unit, allowing accurate measurements even in hard-to-reach or distant areas. It has been engineered to meet a wide range of testing needs while ensuring ease of use.
The red rubber outer casing increases grip, prevents slipping, and provides effective protection for the device.
The measuring range is 1.0 ~ 200,000 LUX / 0.10 ~ 20,000 FC, and units can be switched easily between LUX and FC with a single touch.
Equipped with a high-definition LCD display (34 × 31 mm), the device supports up to 4-digit readings, ensuring clear and precise data visualization.
It also includes data hold and auto power-off functions for added convenience.
Thanks to its accurate performance and robust design, the TA630 series is widely used across all sectors where illumination levels must be verified to ensure safety and compliance with applicable standards and regulations.
Key Features of the TA630 Digital Lux Meter
- Detachable light sensor: allows accurate measurements even in hard-to-reach or distant locations.
- Wide measurement range: 1.0 ~ 200,000 LUX / 0.10 ~ 20,000 FC, suitable for elevators, civil, industrial, and technical applications.
- Quick LUX/FC switching: easily switch between measurement units with a single touch.
- High accuracy: ±4% + 10 digits (calibrated with standard 2856K incandescent lamp).
- High resolution: up to 0.1 LUX/FC for precise readings in low-light environments.
- High-definition LCD display: 34×31 mm screen, supports up to 4-digit readings for clear data visibility.
- Data Hold function: freezes the current reading on the display for easy reference.
- Auto power-off: activates after 15 minutes of inactivity (can be disabled if needed).
- Fast sampling rate: 2 readings per second for responsive performance.
- Wide incidence angle: 120°, ideal for capturing ambient light conditions effectively.
- Rugged, anti-slip design: soft rubber casing enhances grip and protects the instrument from shocks and drops.
- Compact and lightweight: easy to carry, perfect for mobile use and tight spaces.
- Versatile applications: suitable for lifts and elevators, technical lighting, LED inspections, public spaces, offices, safety systems, and regulatory compliance checks.
Technical Specifications
- Measurement Method: Remote (detachable) sensor type
- Range: 1.0 ~ 200,000 LUX / 0.10 ~ 20,000 FC
- Measurement Levels:
LUX: 200 / 2,000 / 20,000 / 200,000
FC: 20 / 200 / 2,000 / 20,000
- Accuracy: ±4% + 10 digits (calibrated with standard 2856K incandescent lamp)
- Resolution:
LUX < 200: 0.1
LUX ≥ 200: 1
FC < 20: 0.1
20 ≤ FC < 200: 0.1
FC ≥ 200: 1
- Display: 4-digit LCD (max reading: 1999)
- Light Sensor: Silicon photodiode with optical filter
- Sampling Rate: 2 times per second
- Incidence Angle: 120°
- Repeat Test Deviation: ±2%
- Spectral Response Range: 400 ~ 700 nm
- Auto Power-Off: After 15 minutes (can be disabled)
- Operating Environment: -10 ~ 50°C, max 80% RH, indoor altitude <2000 m
- Storage Environment: -10 ~ 50°C, max 70% RH (with battery removed)
- Sensor Cable Length: Approx. 1 meter
- Product Dimensions: 130 × 59 × 29 mm
- Display Size: 34 × 31 mm
- Weight: 165 g (excluding batteries)
- Power Supply: 2 × 1.5V AAA batteries (not included)
