L20X

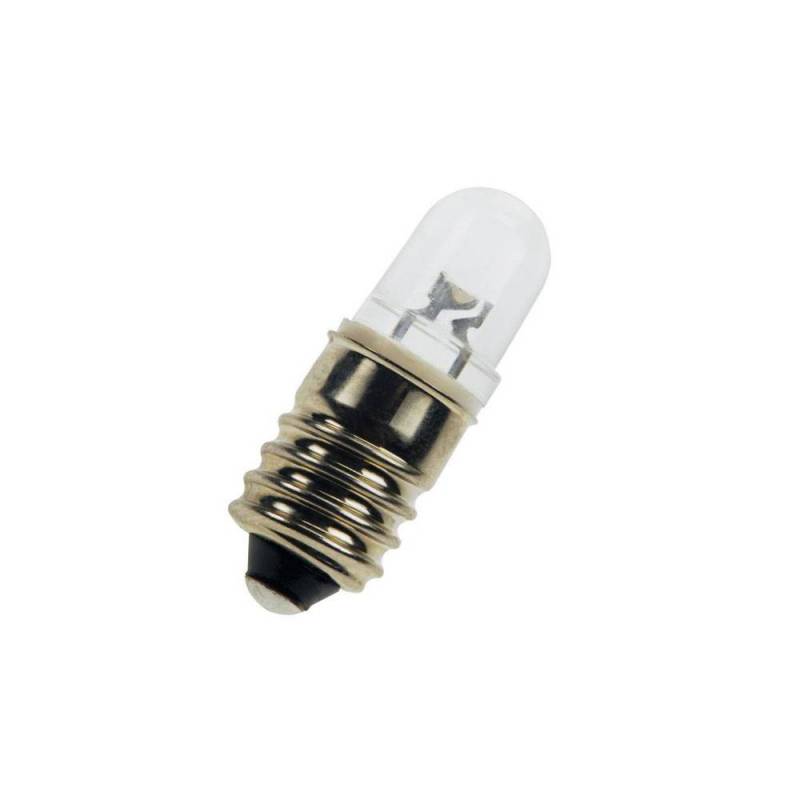

E10 LED BULBS FOR 6/12/28 V BUTTON PANEL
1 LED bulb with E10 socket ideal for replacing incandescent bulbs, operating at 6–12–28 VAC/VDC. Available with white, red or green light. On request, the MINI version with lowered plastic is available.
Technical features:
- Dimensions: 10 mm x 25 mm
- E10 mount
- Colors: White - green - red
Description
The 1 LED bulb with E10 socket is designed and developed to replace traditional incandescent bulbs, ensuring efficiency and reliability. It operates on 6–12–28 VAC/VDC power supply and is available in white, red, and green colors. A MINI version with low plastic is also available on request.
Technical features:
- Dimensions: 10 mm x 25 mm
- E10 mount
- Colors: White - green - red
- Light angle 160°
- Operating temperature: -20° C to +60° C
Electrical Characteristics:
- Voltage 6 V
- Power 0.5 W
- Power consumption 15 mA
- IP40 degree of protection
Technical characteristics
View Angle
160°
Connection
E10
Dimensions
10x25 mm
Power
0,5 W
