L090X

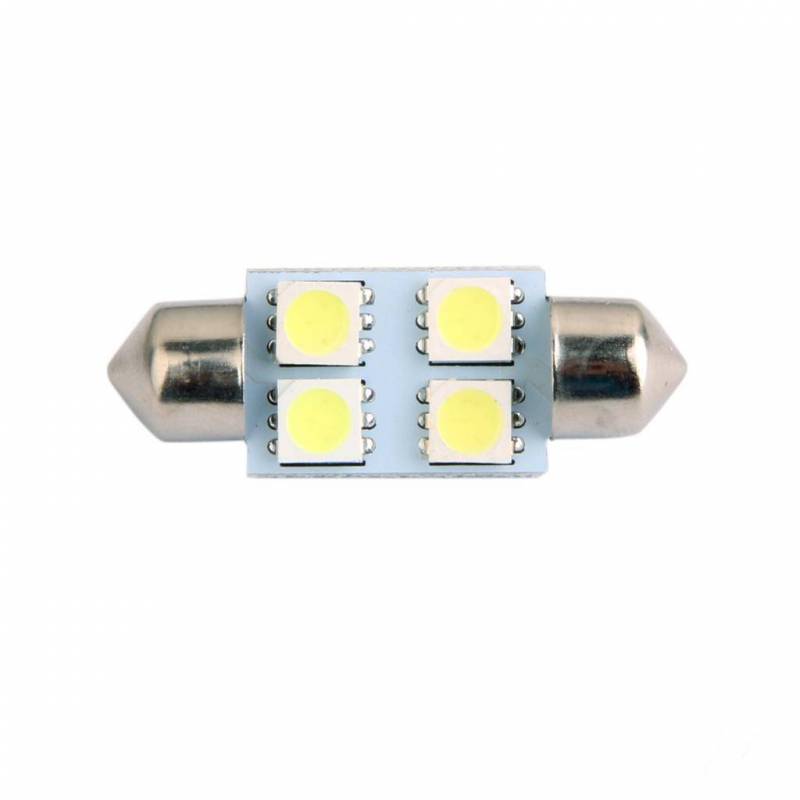

Festoon SMD LED BULBS 5050 - 6 OR 4 LEDs - 0.9/1.5w
Festoon type LED bulb with 4 or 6 SMD 5050 LEDs and SV8.5 socket. It provides efficient illumination with CRI <80 and operating temperature range of -10°C to +40°C. Not compatible with electronic dimmers or transformers.
Technical features:
- Dimensions: 31x15.9 mm - 37x15.9 mm
- N° led: 4 - 6
- SV8.5 mount
- Light angle 120°
- Operating temperature: -10° C to +40° C
Description
The Festoon LED bulb with 4 or 6 SMD 5050 LEDs and SV8.5 socket is designed for applications that require reliability and compactness. It operates with CRI <80 and a temperature range of -10°C to +40°C. To be used without dimmers and electronic transformers, respecting the maximum voltage allowed.
Technical features:
N° 4 LEDs:
- Dimensions: 31x15.9 mm
- SV8.5 mount
- Light angle 120°
- Operating temperature: -10° C to +40° C
- Rated voltage: 10-30 Vdc
- Power 0.9 W
- Luminous flux >72 Lm
N° 6 LEDs:
- Dimensions: 37x15.9 mm
- SV8.5 mount
- Light angle 120°
- Operating temperature: -10° C to +40° C
- Rated voltage: 10-30 Vdc
- Power 1.5 W
- Luminous flux >180 Lm
Color Temperature:
- Cool White (6000°K)
Technical characteristics
View Angle
120°
Connection
SV8.5
Dimensions
31x15,9 mm
37x15,9 mm
37x15,9 mm
Luminous Flux
>72 Lm
>180 Lm
>180 Lm
N° LED
4
6
6
Power
0,9 W
1,5 W
1,5 W
Color Temperature
Bianco Freddo (6000°K)
Operation Temperature
-10°/40°
Voltage
10/30 Vdc
