NminiCOB-480-5W-24V

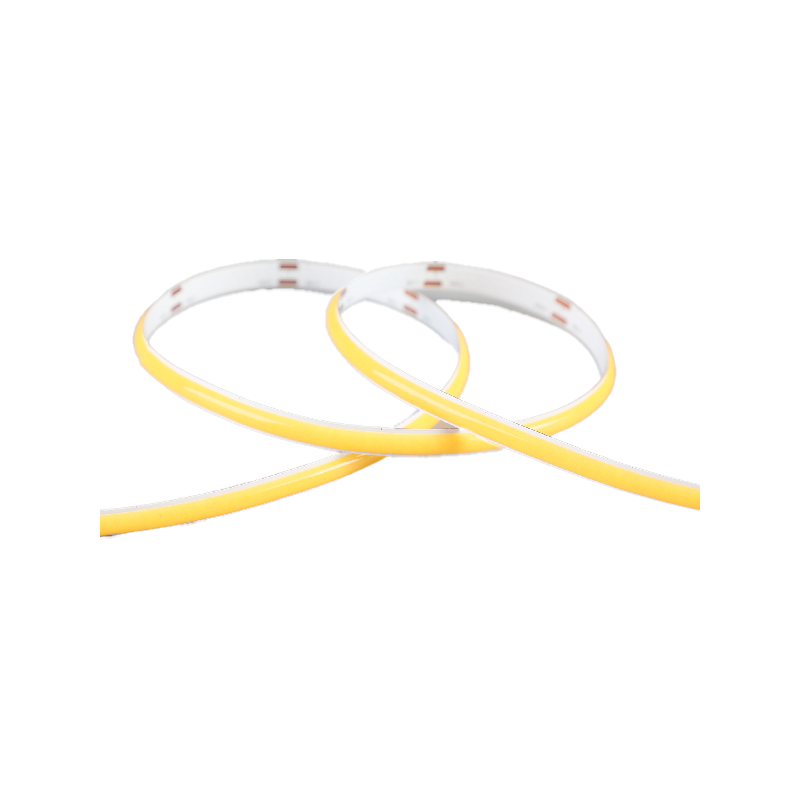

LED Strip COB-5 Mini-24V - 480Led/m 5W/m
The COB LED Strip: is a professional solution that combines high light quality and low energy consumption. Designed to ensure uniform and continuous light, it can be cut every 50mm, making it extremely versatile and easy to install.
Technical features:
- 5 m reel
- N° Led 480 Led/m
- Pcb Width 4mm
- Light angle 180°
Description
The COB 5 Mini flexible LED strip with 480 LEDs/m is a professional solution that combines high light quality and low energy consumption. Designed to ensure uniform and continuous light, it can be cut every 50mm, making it extremely versatile and easy to install.
Perfect for direct lighting and backlighting, this LED strip is CE and RoHS certified, synonymous with safety and quality. Made in PRC.
Technical features:
- Reel 5 mt
- N° Led 480 Led/m
- Cutting Unit 50mm
- Pcb Width 4mm
- Light angle 180°
- Operating temperature -25°C to +45°C
- IP20 - IP44 degree of protection
- CRI Ra>90
Electrical Characteristics:
- Voltage DC24V
- Power 5 W/m
- Flow 400 lm/m - 450 lm/m - 475 lm/m
- Efficiency 80 lm/W - 90 lm/W - 95 lm/W
Color Temperature:
- 3000K - Flux: 400 lm/m - Efficiency: 80 lm/W
- 4000K - Flux: 450 lm/m - Efficiency: 90 lm/W
- 6000K - Flux: 475 lm/m - Efficiency: 95 lm/W
Technical characteristics
View Angle
180°
CRI
>90
Efficiency
80 Lm/W
90 Lm/W
95 Lm/W
90 Lm/W
95 Lm/W
Luminous Flux
400 Lm/m
450 Lm/m
475 Lm/m
450 Lm/m
475 Lm/m
IP rating
IP20
IP44
IP44
Pcb Width
4 mm
Reel Length
5 m
N° LED
480 Led/m
Power
5 W/m
Led Format
COB
Cut
50 mm
Color Temperature
Bianco Freddo (6000°K)
Neutral white (4000° K)
Warm White (3000° K)
Neutral white (4000° K)
Warm White (3000° K)
Operation Temperature
da -25° a +45° C
Voltage
24 V
