MLCXX-C3

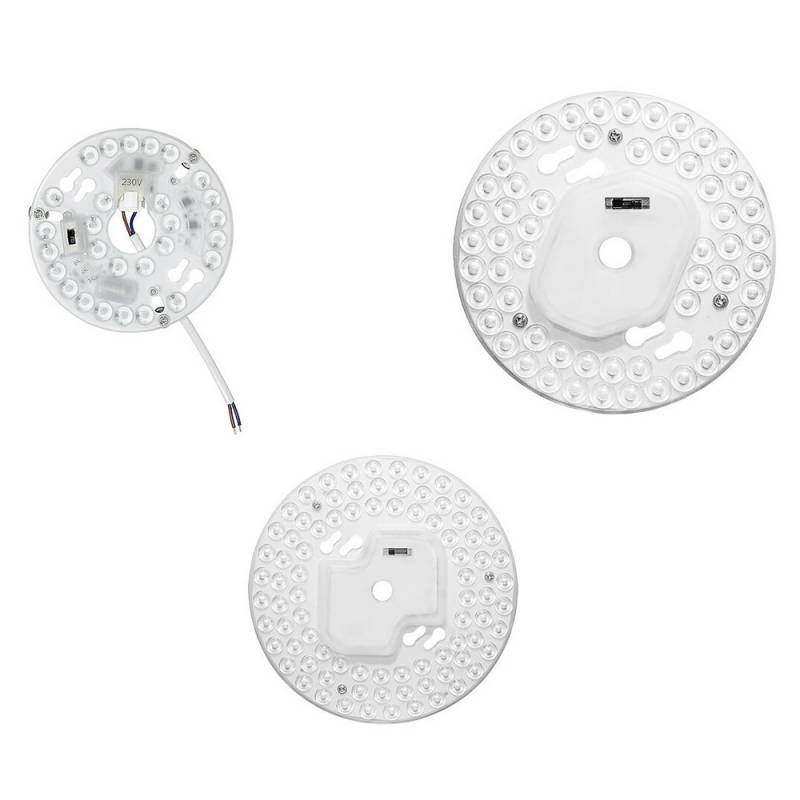

Magnetic circular LED module 220-240V - CCT - 15-18-24 W
MLC CCT Circular LED Module with quick magnetic installation, ideal for elevators, elevators and freight elevators. Easily replaces existing ceiling lights, with built-in power supply and temperature selection (3000K, 4000K, 6000K). Available in different sizes and powers.
Technical features:
- Height: 12 mm
- Dimensions: Ø170 mm - Ø120 mm - Ø135 mm
- Round shape
- Light Angle: 180°
- IP20 degree of protection
- Insulation Class: II
- Color rendering: CRI>80
Description
The MLC CCT Circular LED Module is the innovative solution for upgrading the lighting of elevators, elevators and freight elevators. Thanks to the magnetic system, installation is quick and without the need for screws, requiring only the connection to the power supply. It is available in different sizes and powers to adapt to the many existing appliances.
Technical features:
- Height: 12 mm
- Dimensions: Ø170 mm - Ø120 mm - Ø135 mm
- Round shape
- Light Angle: 180°
- Nominal life: 25,000h
- Operating temperature from -20°C to + 40°C
Electrical Characteristics:
- Voltage 220 Vac - 240 Vac
- Power 15 W - 18 W - 24 W
- Flow 1500 lm - 1800 lm - 2400 lm
- Insulation Class: II
- IP20 degree of protection
- Color rendering: CRI>80
Color Temperature:
- Warm White (3000K)
- Cool White (6000K)
- Neutral White (4000K)
Technical characteristics
View Angle
180°
Class protection
II
Dimensions
Ø 170x20 mm
ø 120 mm
ø 135 mm
ø 120 mm
ø 135 mm
Rated Life
25.000 h
Luminous Flux
1530 Lm
2400 Lm
8000 Lumen
2400 Lm
8000 Lumen
Shape
Round
IP rating
IP20
Power
15 W
18 W
24 W
18 W
24 W
Color Temperature
Bianco Freddo (6000°K)
Neutral white (4000° K)
Warm White (3000° K)
Neutral white (4000° K)
Warm White (3000° K)
Operation Temperature
da -20° a +40° C
Voltage
230 Vac
