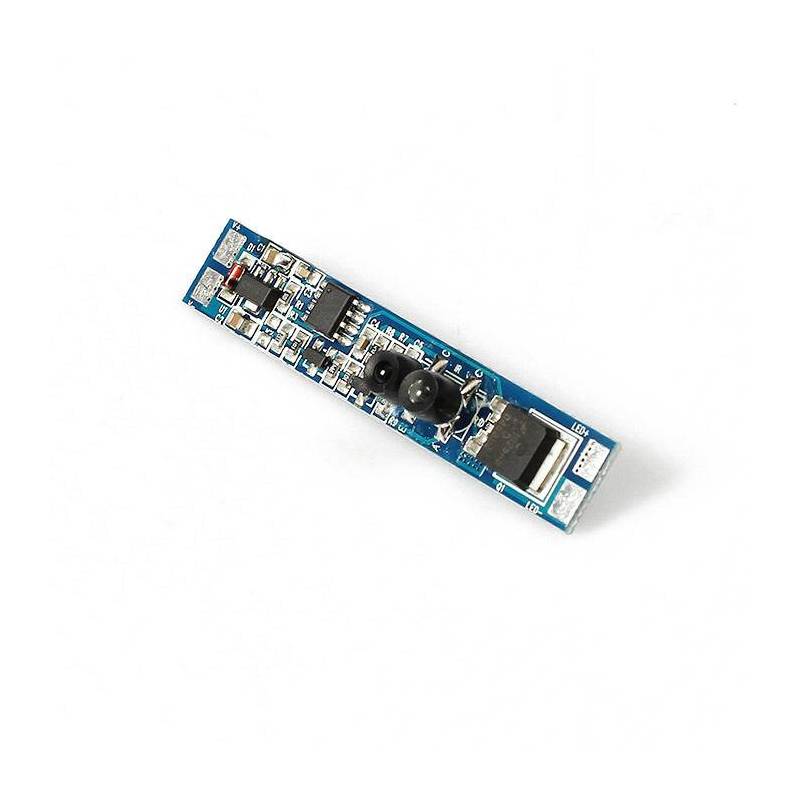

Hand Sensor for Bars and LED Strips - ON/OFF
Zoom photo
  • Hand Sensor for Bars and LED Strips - ON/OFF
IR-SW001

Hand Sensor and LED Strips - ON/OFF

LED touch sensor for LED bars and strips, with contactless switching on and off via infrared sensor.

  • Input: 12V ~ 24V
  • Power: 96W for 12V / 192W for 24V
  • Output Current: 8A max
  • Dimensions: 10x55mm
  • Working Distance: 6-9 cm
  • ON/OFF when the hand passes over the infrared.
Secure payments
Secure payments
Fast shipping
Fast shipping
Return policies
Return policies
Description

LED touch sensor designed for practical and hygienic control of LED lighting. It detects hand movement at a distance of approximately 6–9 cm, activating the light automatically. A second swipe of the hand allows the light to be switched off. Ideal for modern, intuitive and contactless operation.

Technical characteristics
Output Current
8A max
Dimensions
10x55mm
Input
12V-24V
Power
96W (12 V)
192W (24V)
Sensor Type
Touch on
Download documents
IR-SW001 Sensor Data Sheet IR-SW001 Sensor
