NP027

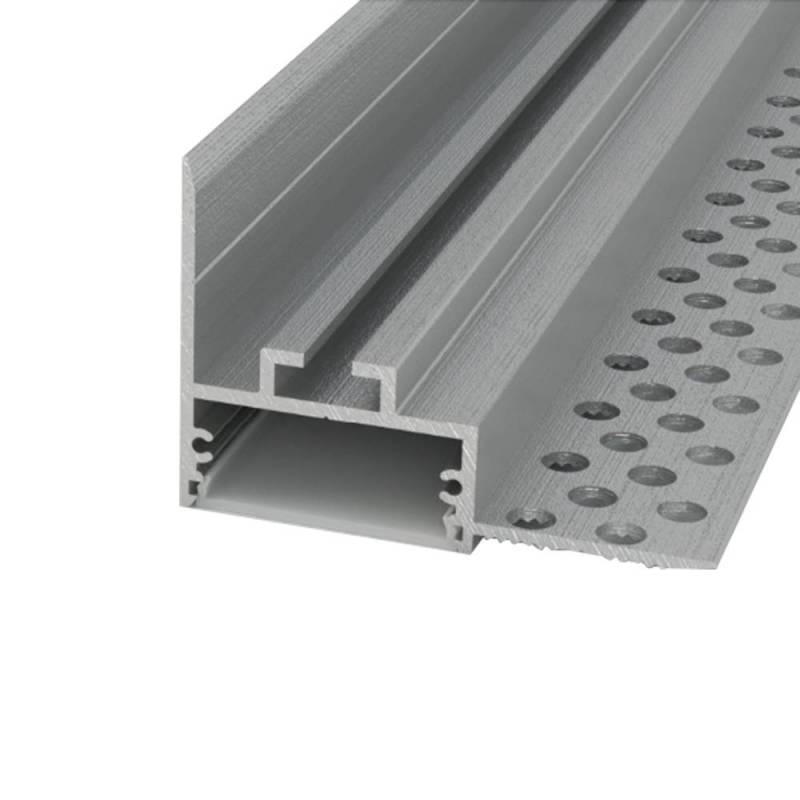

NP027 Aluminum LED Profile
Extruded aluminum LED profile, guarantees optimal heat dissipation, durability and an elegant design. Available in different finishes and customizable.
Technical features:
- Resistant extruded aluminum LED profile
- Section size of 30.8 mm x 38.1 mm
- Standard length 2 meters, with the possibility of cutting to size. On request length 3 meters
- Profile Height Range 31-40mm
- Profile Width Range 21-30mm
- Dissipation Capacity: recommended for use for LED strips up to 35 W/m
- Shape Angular Profile
- Type of application: Ceiling
- Available finishes: Anodized Aluminum - White Painted - Raw Profile
- Type of cover: Flat Opal - PMMA Opal - Flat Black PMMA - Flat Prismatic Transparent
We create custom finished product solutions complete with LED strip, power cable and Led driver.
MADE IN ITALY
Description
The NP027 aluminum LED profile is made of extruded aluminum, it ensures optimal thermal dissipation, increasing the useful life of the LEDs and improving light performance.
The following accessories are available:
Blanking Caps:
- Oxidized caps kit n.2 Closed caps + n.1 with hole
Technical characteristics
Profile Height
31-40 mm
Application
Ceiling
LED Profile Dimensions
30,8x38,1 mm
Finishing
Rough
Satin Aluminium
White
Satin Aluminium
White
Profile Shape
Angular
Profile Width
21-30 mm
Max length bar
3 m
Utilizzo
con Strip Led fino a 35 W/m
