NP029-1

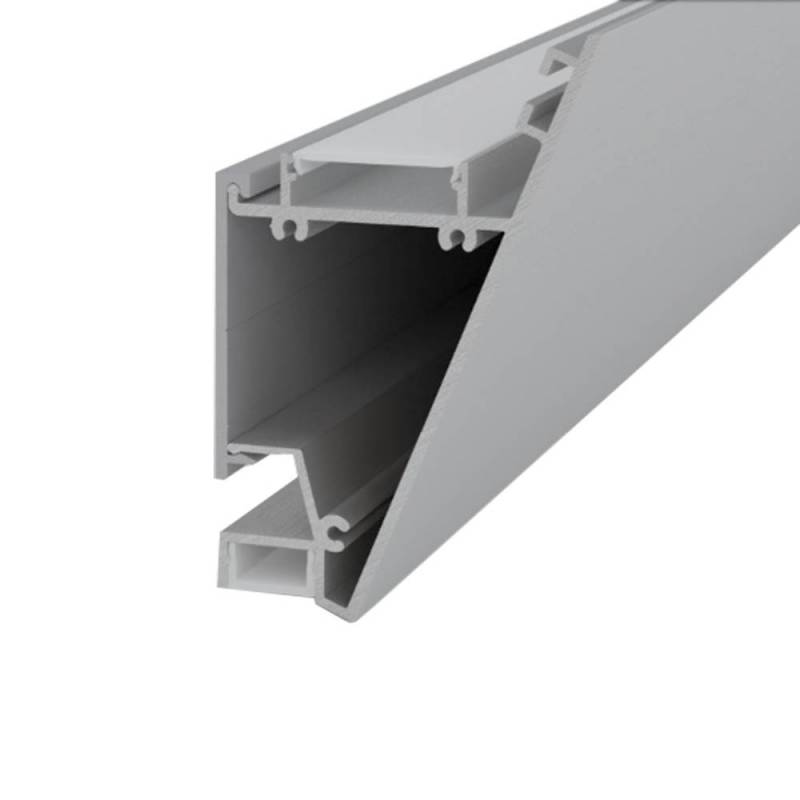

NP029-1 Aluminum LED Profile
Extruded aluminum LED profile, guarantees optimal heat dissipation, durability and an elegant design. Available in different finishes and customizable.
Technical features:
- Resistant extruded aluminum LED profile
- Section size of 97.5 mm x 62.7 mm
- Standard length 2 meters, with the possibility of cutting to size. On request length 3 meters
- Profile Height Range 91-100mm
- Profile Width Range 61-70mm
- Dissipation Capacity: recommended for use for LED strips up to 50 W/m
- Shape Angular Profile
- Type of application: Wall
- Available finishes: Painted White - Painted Black - Painted Silver
- Type of cover: Flat Opal - PMMA Opal - Long Fins Opal - Prismatic Flat Transparent - PMMA Opal Long Fins - Flat Transparent
The following accessories are available:
- Kit of silver painted caps n.2 Closed cap n.4 stainless steel screws
- Base profile for fixing
- Aluminum Linear Joint
We create custom finished product solutions complete with LED strip, power cable and Led driver.
MADE IN ITALY
Description
The NP029-1 Luminum LED Profile is made of extruded aluminum, it ensures optimal thermal dissipation, increasing the useful life of the LEDs and improving light performance.
Key features:
- Heat Dissipation: Aluminum provides efficient thermal management, extending the life of the LEDs
- Protection: The profile protects the LED strips from dust, moisture, and impacts
- Aesthetics: Offers a clean and professional look
Technical characteristics
Profile Height
91-100 mm
Application
Wall
LED Profile Dimensions
97,5x62,7 mm
Finishing
Black
Satin Aluminium
White
Satin Aluminium
White
Profile Width
61-70 mm
Max length bar
3 m
Utilizzo
con Strip Led fino a 50 W/m
