MLCF20

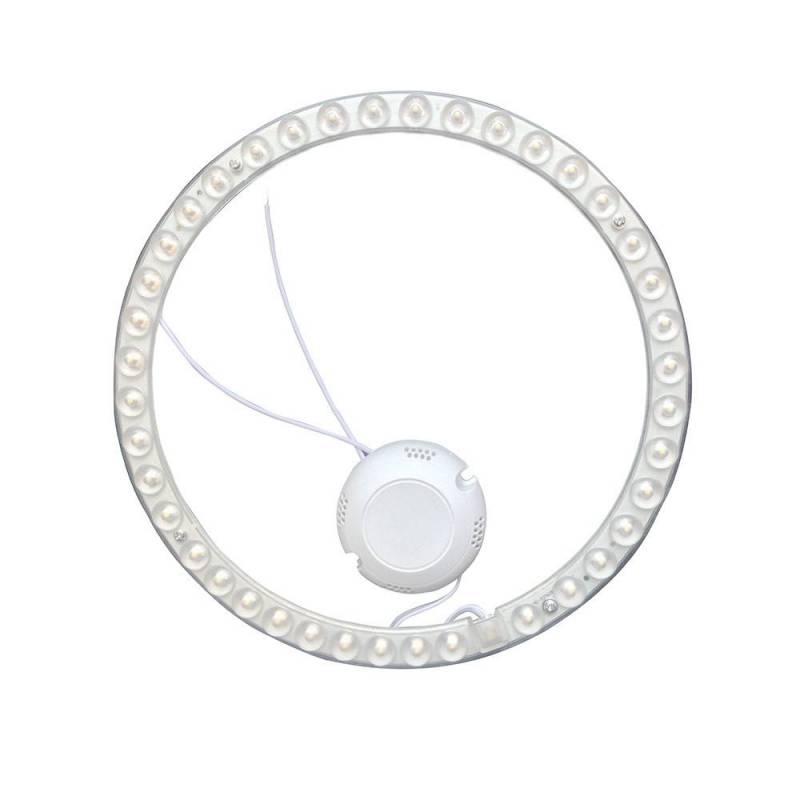

Circular magnetic LED module with hole 220-240Vac - 20 W
The Magnetic LED Module with Central Hole is designed and developed for lighting replacement in elevators, elevators and freight elevators, ideal for ceiling lights with through-hole. Quick installation without screws, built-in power supply.
Technical features:
- Dimensions: Ø203 x 27 mm
- Round shape
- Light Angle: 160°
- IP20 degree of protection
- Insulation Class: II
- Built-in power supply
Description
The Magnetic LED Module with Central Hole is designed and developed for replacing lighting in elevators, elevators and freight elevators, ideal for ceiling lights with a through-hole. Thanks to the magnetic mounts, installation is quick and screwless, requiring only connection to the power supply. The built-in power supply makes it easy to retrofit, ensuring efficiency and reliability.
Technical features:
- Height: 27 mm
- Dimensions: Ø203 mm
- Round shape
- Light Angle: 160°
- Nominal life: 30,000h
- Operating temperature from -20°C to + 40°C
Electrical Characteristics:
- Voltage 230 Vac
- Power 20 W - 30 W
- Flow 2000 lm
- Insulation Class: II
- IP20 degree of protection
Color Temperature:
- Warm White (3000K)
- Neutral White (4000K)
Technical characteristics
View Angle
160°
Class protection
II
Dimensions
203x27 mm
Rated Life
30.000 h
Luminous Flux
2000 Lm
Shape
Round
IP rating
IP20
Power
20 W
30 W
30 W
Color Temperature
Neutral white (4000° K)
Warm White (3000° K)
Warm White (3000° K)
Operation Temperature
da -20° a +40° C
Voltage
230 Vac
230 Vac
230 Vac
