NSL-D-2835-22W-240-10MM-IP20

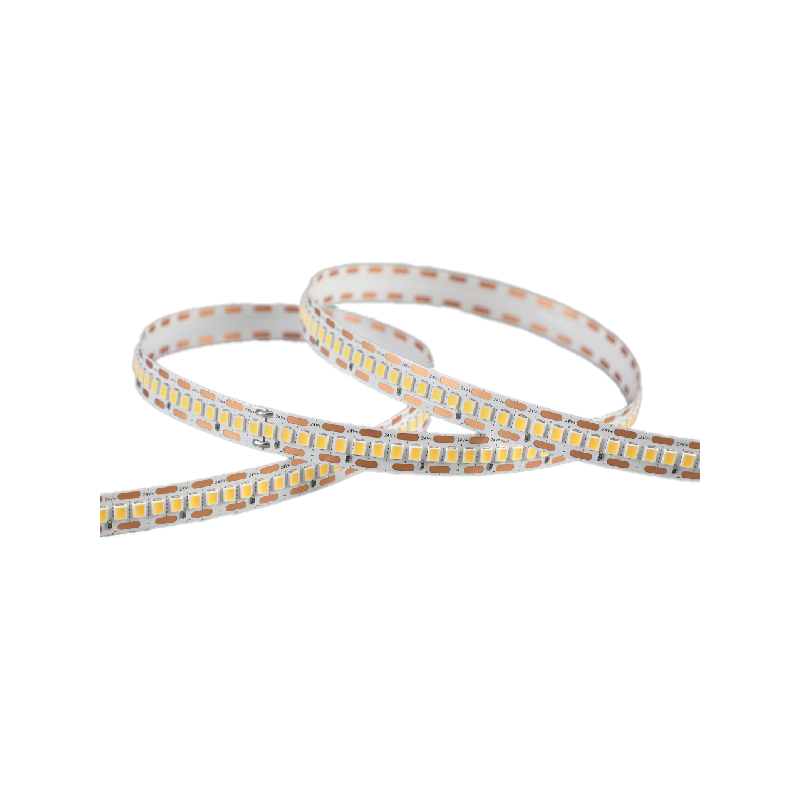

LED Strip SMD 2835 - 24V - 22W/m - 240Led/m
The SMD 2835 Flexible LED Strip: is a professional solution that combines high light quality and low energy consumption. Designed to ensure uniform and continuous light, it can be cut every 4.17 mm, making it extremely versatile and easy to install.
Technical features:
- 5 m reel
- N° Led 240 Led/m
- Pcb Width 10mm
- Dimmable
- Energy Class D - E
Description
The SMD Flexible LED Strip with 240 Led/m is a professional solution that combines high light quality and low energy consumption. Designed to ensure uniform and continuous light, it can be cut every 4.17 mm, making it extremely versatile and easy to install.
Perfect for direct lighting and backlighting.
Technical features:
- Reel 5 mt
- N° Led 240 Led/m
- Cutting Unit 1led/4.17mm
- Pcb Width 10mm
- Operating temperature from -25°C to + 40°C
- Critical Temperature: 75°C (max)
- IP20 - IP65 degree of protection
- CRI Ra>90
Electrical Characteristics:
- Voltage DC24V
- Power 22 W/m
- Flow 2440 lm/m - 2795 lm/m - 2950 lm/m - 2990 lm/m - 3035 lm/m
- Efficiency 111 lm/W - 127 lm/W - 134 lm/W - 136 lm/W - 138 lm/W
Color Temperature:
- 2300K - Flux: 2440 lm/m - Efficiency: 111 lm/W
- 2700K - Flux: 2795 lm/m - Efficiency: 127 lm/W
- 3000K - Flux: 2950 lm/m - Efficiency: 134 lm/W
- 3500K - Flux: 2990 lm/m - Efficiency: 136 lm/W
- 4000K - Flux: 3035 lm/m - Efficiency: 138 lm/W
- 6000K - Flux: 2950 lm/m - Efficiency: 134 lm/W
Technical characteristics
View Angle
120°
CRI
>90
Efficiency
134 lm/W
138 lm/W
138 lm/W
Luminous Flux
2950 lm/m
3035 lm/m
3035 lm/m
IP rating
IP20
IP65
IP65
Pcb Width
10 mm
Reel Length
5 m
N° LED
224 Led/m
Power
22 W
Led Format
2835
Cut
4,17 mm
Color Temperature
Bianco Freddo (6000°K)
Neutral white (4000° K)
Warm White (3000° K)
Neutral white (4000° K)
Warm White (3000° K)
Operation Temperature
da -25° a +40° C
Voltage
24 V
