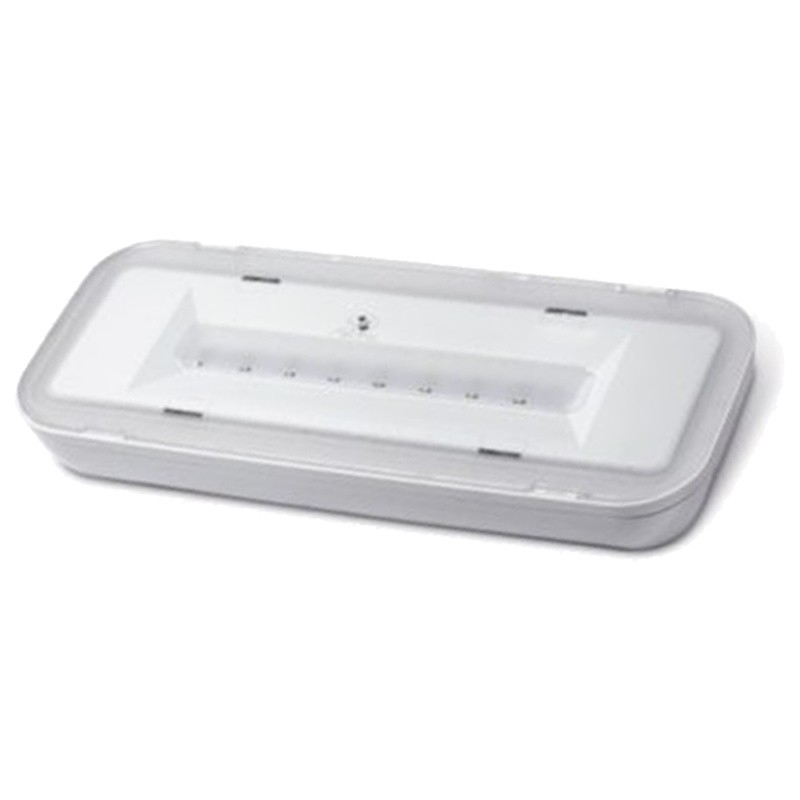

Emergency Led Lamp NOA Emergency Only (SE)
  • Emergency Led Lamp NOA Emergency Only (SE)

Emergency Led Lamp NOA Emergency Only (SE) - IP65

Reference: NL8/1SE

Suitable product for lifts and elevators

Emergency lighting luminaire

NOA emergency LED lamp is a product made with high-efficiency LEDs inserted in a symmetrical optic that ensures a perfect uniformity of the light beam. It represents the ideal solution for lift machine rooms, indoor and outdoor industrial areas, workshops, warehouses, pavilions, etc., being a small product with high luminous fluxes that allow compliance with current regulations by reducing the number of light points.

This NOA emergency luminaire is in Emergency Only (SE) version, i.e. Non-Permanent light operation with 1.5 h or 3 h emergency battery autonomy.

Available in different wattages 8W, 11W, 18W, 24W, 32W

  • Degree of protection IP65
  • Impact protection IK07
  • Insulation class: Class II
  • Self-extinguishing class: V2 - plastic body

Installation: wall, ceiling, recessed, flag, recessed with box.

NOA Model
Register to buy


Safety Payments



Delivery



Return Policies

TECHNICAL DATA - NOA LED LAMP IP65

  • Double insulation
  • Can also be installed on a flammable surface
  • Lamp body in self-extinguishing plastic material (CEI EN 60598-1, UL 94)Transparent screen-printed screenBatteries Ni-Cd ,Ni-Mh, Li
  • Prepared for wall and ceiling installation with ø 16 tubes,
    fixing on traditional European modular boxes or flush-mounting with proprietary ATS box
  • Operating temperature 0-40 °C
  • External dimensions 125mm x 295mm x 40mm
  • Built in accordance with CEI EN 60598-2-22
  • Built in accordance with EN62471 - Group O
  • Power supply 230 V 50Hz +/- 15%, 24 V dc
  • Mains presence and circuit activation LEDsAvailable runtimes 1.5 and 3 hours
  • Recharge times 24h

Available models IP65 version

NL8/1SE - Power: 8W - Autonomy: 1.5h

NL8/3SE - Power: 8W - Autonomy: 3h

NL11/1SE - Power: 11W - Autonomy: 1,5h

NL11/3SE - Power: 11W - Autonomy: 3h

NL18/1SE - Power: 18W - Autonomy: 1,5h

NL18/3SE - Power: 18W - Autonomy: 3h

NL24/1SE - Power: 24W - Autonomy: 1,5h

NL24/3SE - Power: 24W - Autonomy: 3h

NL32/1SE - Power: 32W - Autonomy: 1,5h

NL32/1SE - Power: 32W - Autonomy: 3h

Download

NOA led lamp SE IP65

Data sheet NOA LED emergency light only emergency SE with IP65 protection

Download (132.77k)
