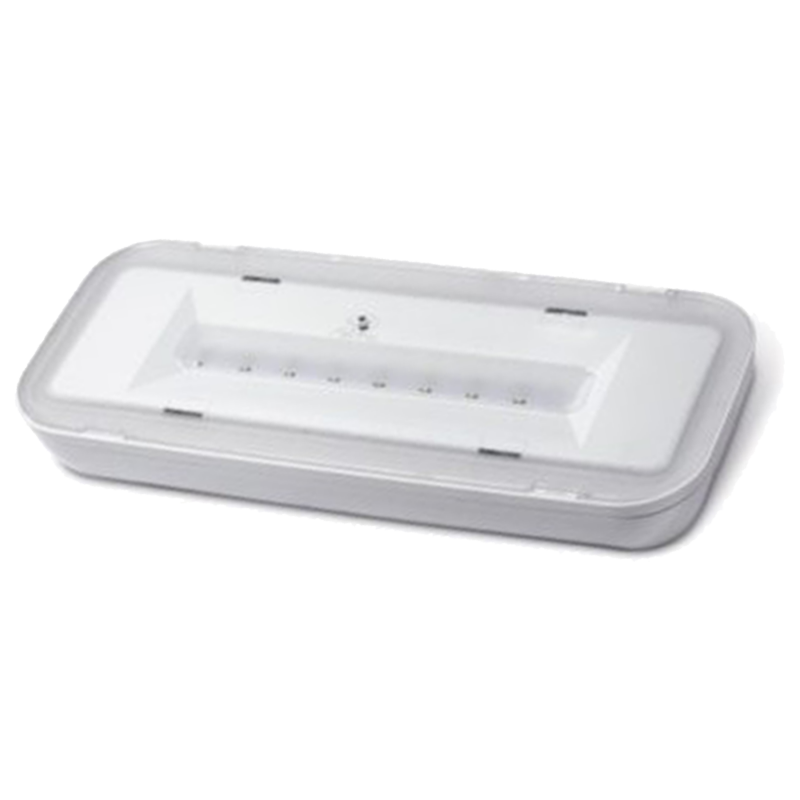

NOA LED Emergency Lamp SE/SA Maintained / Non-Maintained
Reference: NL8/1SE
Suitable product for lifts and elevators
Emergency lighting luminaire
NOA emergency LED lamp is a product made with high-efficiency LEDs inserted in a symmetrical optic that ensures a perfect uniformity of the light beam. It represents the ideal solution for lift machine rooms, indoor and outdoor industrial areas, workshops, warehouses, pavilions, etc., being a small product with high luminous fluxes that allow compliance with current regulations by reducing the number of light points.
The NOA emergency lamp is available in SE (Non-Maintained or Only Emergency) and SA (Maintained) configurations, providing permanent and non-permanent lighting modes, with a battery autonomy of 1.5 or 3 hours in emergency mode
Available in different wattages 8W, 11W, 18W, 24W, 32W
- Degree of protection IP42
- Impact protection IK07
- Insulation class: Class II
- Self-extinguishing class: V2 - plastic body
Installation: wall, ceiling, recessed, flag, recessed with box.
TECHNICAL DATA - NOA LED LAMP SE/SA
- Double insulation
- Can also be installed on a flammable surface
- Lamp body in self-extinguishing plastic material (CEI EN 60598-1, UL 94)Transparent screen-printed screenBatteries Ni-Cd ,Ni-Mh, Li
- Prepared for wall and ceiling installation with ø 16 tubes,
fixing on traditional European modular boxes or flush-mounting with proprietary ATS box - Operating temperature 0-40 °C
- External dimensions 125mm x 295mm x 40mm
- Built in accordance with CEI EN 60598-2-22
- Built in accordance with EN62471 - Group O
- Power supply 230 V 50Hz +/- 15%, 24 V dc
- Mains presence and circuit activation LEDsAvailable runtimes 1.5 and 3 hours
- Recharge times 24h
Available models
NL8/1SE-SA - Power: 8W - Autonomy: 1.5h
NL8/3SE-SA - Power: 8W - Autonomy: 3h
NL11/1SE-SA - Power: 11W - Autonomy: 1,5h
NL11/3SE-SA - Power: 11W - Autonomy: 3h
NL18/1SE-SA - Power: 18W - Autonomy: 1,5h
NL18/3SE-SA - Power: 18W - Autonomy: 3h
NL24/1SE-SA - Power: 24W - Autonomy: 1,5h
NL24/3SE-SA - Power: 24W - Autonomy: 3h
NL32/1SE-SA - Power: 32W - Autonomy: 1,5h
NL32/1SE-SA - Power: 32W - Autonomy: 3h
